DX51D+Z PPGI Prepainted Galvanized Steel Coil | EN10346 DX51D+Z Color Coated Steel Coil

DX51D+Z PPGI Prepainted Galvanized Steel Coil | EN10346 DX51D+Z Color Coated Steel Coil

Excellent formability for roll forming and corrugated processing
Multiple coating options: PE, SMP, HDP, PVDF for different service life
Full RAL color palette & custom special patterns available
Stable DX51D+Z galvanized substrate with reliable corrosion resistance
Full inspection before shipment, MTC provided for every batch

Product Overview

DX51D+Z PPGI Prepainted Galvanized Steel Coil is the most widely used general grade color coated steel, produced by continuously coating organic paint on hot-dip galvanized DX51D+Z substrate complying with EN10346 standard. DX51D+Z substrate features balanced mechanical performance, good bending and stamping performance, ideal for common architectural forming work.

Available coating systems include PE, SMP, HDP and PVDF. Front paint thickness 18–25μm, back paint 5–10μm. We support all RAL solid colors, wood grain, marble, metallic, camouflage customized finishes. Standard width options:914mm,1000mm,1219mm,1250mm, thickness range 0.12–1.5mm.

This DX51D+Z PPGI coil can be slit, cut to length or roll formed into corrugated sheets, wall panels. Widely used in factory roofing, warehouse wall cladding, prefab house, container panels, agricultural buildings and outdoor advertising boards. Our products meet EN, ASTM, JIS, GB standards, each export batch comes with material test certificate.

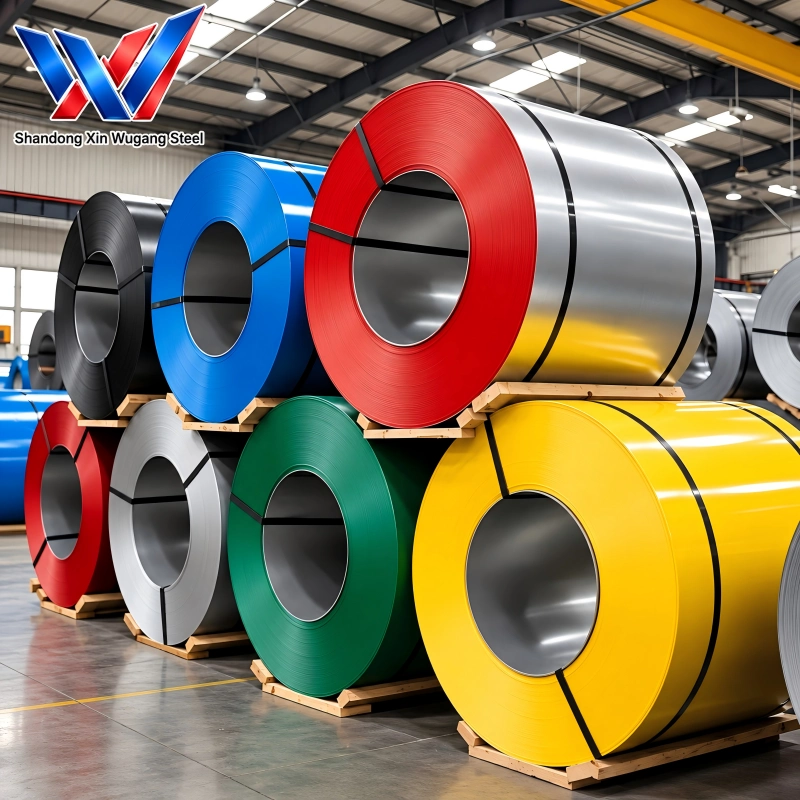

Prepainted Steel Coil - PPGI/PPGL

Chemical & Mechanical Property Snapshot

Grade	C (Max)	Mn (Max)	P (Max)	S (Max)	Yield Strength Rp0.2 (MPa)	Tensile Strength Rm (MPa)	Elongation A80 (%)	Substrate	Equivalent Grade
DX51D+Z PPGI	0.12	0.60	0.10	0.045	240–380	270–500	≥22	Hot-dip galvanized GI	ASTM A755 CS Type B; JIS SPCC+Z; GB DX51D+Z

Detailed Technical Specifications

Item	Specification
Product Name	DX51D+Z PPGI Prepainted Galvanized Steel Coil
Product Type	Prepainted Galvanized Steel Coil (PPGI)
Substrate	DX51D+Z Hot Dip Galvanized Steel
Standard	EN10346; Refer ASTM A755, JIS G3312, GB/T 12755
Grade	DX51D+Z
Coating Types	PE / SMP / HDP / PVDF
PE Service Life	Approx. 5–8 years
SMP Service Life	Approx.10–15 years
HDP Service Life	Approx.15–20 years
PVDF Service Life	Approx.25–30 years
Front Paint Thickness	18–25 μm
Back Paint Thickness	5–10 μm
Primer / Coating System	Customizable coating system according to application requirements
Color Range	RAL international color range, RAL1000-RAL9018
Available Colors / Finishes	Pearl gloss, metallic, camouflage, wood grain, marble pattern and other specified finishes
Steel Thickness	0.12–1.5 mm
Common Thicknesses	0.17 / 0.20 / 0.25 / 0.30 / 0.35 / 0.40 / 0.50 / 0.60 / 0.70 / 0.80 / 1.00 / 1.20 / 1.50 mm
Standard Widths	914 / 1000 / 1219 / 1250 mm
Coil Inner Diameter	508 mm
Coil Packaging	Standard export packaging; customized packaging options can be discussed
Surface Treatment	Anti-fingerprint, protective film, coating and other specified surface treatments
Processing Options	Slitting, cut-to-length, roll forming
Edge / Shape Processing	Suitable for subsequent profiling and forming according to customer requirements
Typical Applications	Steel structure buildings, exterior and interior wall panels, roofing panels, factory buildings, warehouse panels, container panels, mobile houses, advertising boards, farm buildings and related construction applications
Customization	Thickness, width, coating system, color, surface finish and processing requirements can be specified according to project requirements
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

PPGI / PPGL Color Chart & Finishes

We supply PPGI and PPGL prepainted steel coil with full RAL solid color system and multiple customized pattern finishes. Gloss, matte, metallic, pearlescent, wood grain, marble grain, brick pattern, tile pattern and stucco texture options are available. Custom color & custom pattern are acceptable according to customer samples. Please note that slight color difference exists between screen display and real steel coil, physical color card can be provided for final confirmation before mass production.

Color Category	RAL No.	Color Name	Surface Finish	Application
White Series	RAL9010	Pure White	Gloss / Matte	Roofing, wall cladding, containers
White Series	RAL9002	Off White	Gloss / Matte	Building facades, warehouse panels
Grey Series	RAL7035	Light Grey	Gloss / Matte	Factory walls, equipment shells
Grey Series	RAL7024	Graphite Grey	Gloss / Matte	Roof tiles, exterior decoration
Grey Series	RAL9006	Silver Grey (Metallic)	Metallic Gloss	Roof decorative panels
Red Series	RAL3009	Oxide Red	Gloss	Corrugated roofs, agricultural buildings
Red Series	RAL3020	Traffic Red	Gloss / Matte	Doors, advertising boards
Blue Series	RAL5005	Signal Blue	Gloss	Factory roofing, enclosures
Green Series	RAL6005	Moss Green	Gloss / Matte	Warehouse roofs, farm buildings
Brown Series	RAL8017	Chocolate Brown	Gloss / Matte	Villa roofs, wall panels
Pattern Series	Custom	Wood Grain	Embossed Printed Texture	Interior & exterior walls, villa roofing
Pattern Series	Custom	Marble Grain	Printed Texture	Wall cladding, decorative panels
Pattern Series	Custom	Camouflage Pattern	Printed Coating	Special engineering projects, warehouse enclosures
Pattern Series	Custom	Brick Pattern	Embossed Printed Texture	Building facade decoration
Pattern Series	Custom	Tile Pattern	Printed Texture	Imitation tile roofing sheets
Pattern Series	Custom	Stucco Texture	Embossed Matte	Exterior wall panels

Product Comparison Table

Grade	Standard	Substrate Type	Yield Strength(MPa)	Tensile Strength(MPa)	Elongation A80 (%)	Equivalent Grades	Main Application
DX51D+Z	EN10346	Hot dip galvanized GI	240–380	270–500	≥22	ASTM A755 CS Type B; JIS SPCC+Z; GB DX51D+Z	General roofing, wall cladding, simple stamping
DX52D+Z	EN10346	Hot dip galvanized GI	220–350	260–420	≥26	ASTM A755 FS Type A; JIS SPCD+Z; GB DX52D+Z	Deep drawing, light stamped components
DX53D+Z	EN10346	Hot dip galvanized GI	200–300	250–380	≥30	ASTM A755 FS Type B; JIS SPCE+Z; GB DX53D+Z	Deep drawing parts, home appliance shell
DX54D+Z	EN10346	Hot dip galvanized GI	180–260	240–350	≥34	ASTM A755 FS Type C; JIS SPCEN+Z; GB DX54D+Z	Extra deep drawing, complex stamping parts
DX55D+Z	EN10346	Hot dip galvanized GI	160–240	230–330	≥36	ASTM A755 EDDS; JIS SPCE deep draw; GB DX55D+Z	Ultra deep drawing, complex formed profiles
DX56D+Z	EN10346	Hot dip galvanized GI	140–220	220–310	≥38	ASTM A755 EDD; JIS SPCEN ultra deep draw; GB DX56D+Z	Super deep drawing, complicated deep drawn workpieces

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Industrial Factory Panels PPGI Steel

Container Sheets PPGI Steel

Rolling Shutters PPGI Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is DX51D+Z PPGI steel coil?

DX51D+Z PPGI coil is prepainted galvanized steel coil with DX51D+Z hot dip galvanized substrate under EN10346. It is the most popular general grade color coated steel for building construction.

What coating options are available for DX51D+Z PPGI?

We provide PE, SMP, HDP and PVDF coating systems. PVDF has best anti-weathering performance for coastal harsh environment.

What RAL colors can you supply for DX51D+Z PPGI coil?

Full RAL 1000~9018 solid colors, plus wood grain, marble, metallic, camouflage and other custom printed patterns. Custom color samples are acceptable.

What is the MOQ of DX51D+Z PPGI coil?

Our MOQ is 5 tons. We accept mixed color and mixed coating for large orders.

Can DX51D+Z PPGI be roll formed into corrugated roof sheets?

Yes. DX51D+Z has good bending property, suitable for roll forming, slitting and cut to length processing.
