DX56D+AZ Galvalume Steel Coil | Extra Deep Draw Aluzinc GL Coil

DX56D+AZ Galvalume Steel Coil | Extra Deep Draw Aluzinc GL Coil

Ultra-low carbon substrate, highest elongation for extra deep drawing stamping
Uniform 55% Al-Zn-Si coating, good coating adhesion after heavy forming
Equivalent cross standard: EN DX56D+AZ, ASTM EDDS, JIS SPCE+AZ, GB DC05+AZ
Minimal spring back during complex stamping & bending
Multiple surface options and custom slitting & cut length service

Product Overview

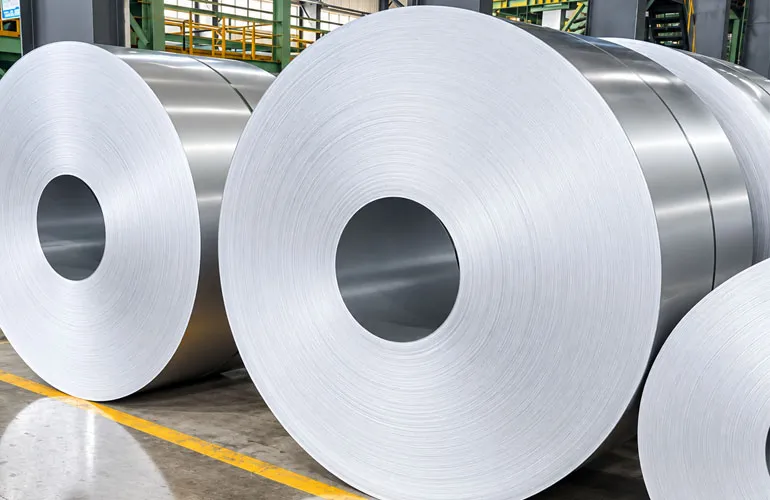

DX56D+AZ Galvalume Steel Coil is extra deep drawing aluzinc GL coil under EN10346 standard. It adopts ultra low carbon cold rolled substrate with hot dipped 55% aluminum zinc silicon alloy coating. DX56D+AZ has the best ductility among DX series grades, designed for ultra deep drawing, complex stamping and complicated forming workpieces.

Coating weight range AZ50-AZ200g/m², available surface treatment: passivation, chromium-free passivation, anti-rust oil and anti-fingerprint AF. Thickness 0.18–2.5mm, mainstream 0.2–1.5mm, standard widths 914,1000,1219,1250mm. We can slit coil into narrow strips or cut into flat sheets according to customer drawing.

DX56D+AZ aluzinc coil features ultra high elongation ≥38%, low yield strength, greatly reduces cracking risk for complex deep drawn parts. It is widely used for deep stamped metal housings, complex formed components, precision metal profiles, home appliance shell parts. The aluzinc coating provides excellent corrosion resistance and high temperature resistance after forming. Mill Test Certificate is provided for every shipment batch.

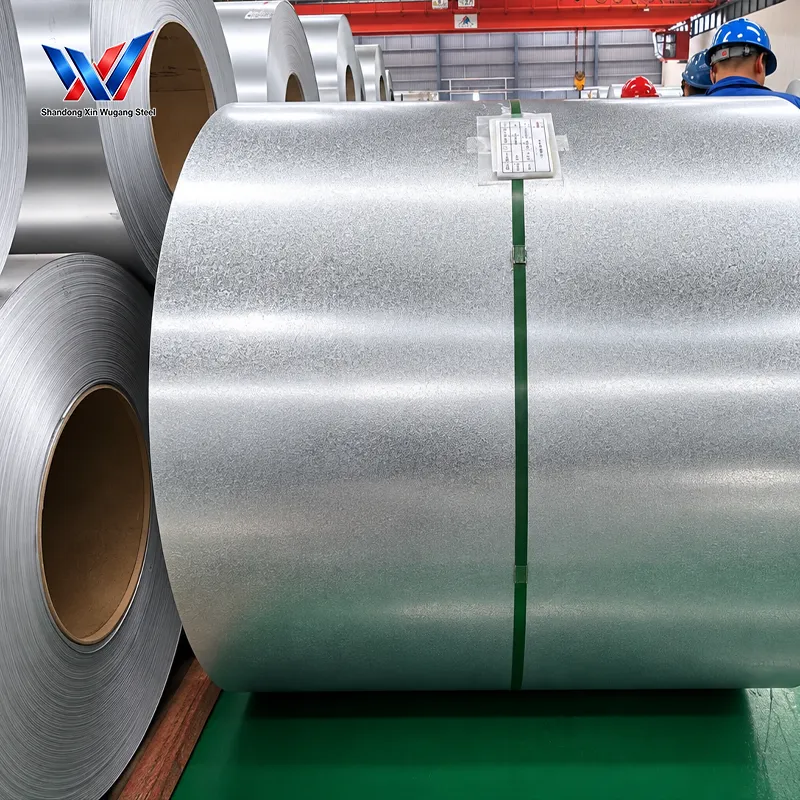

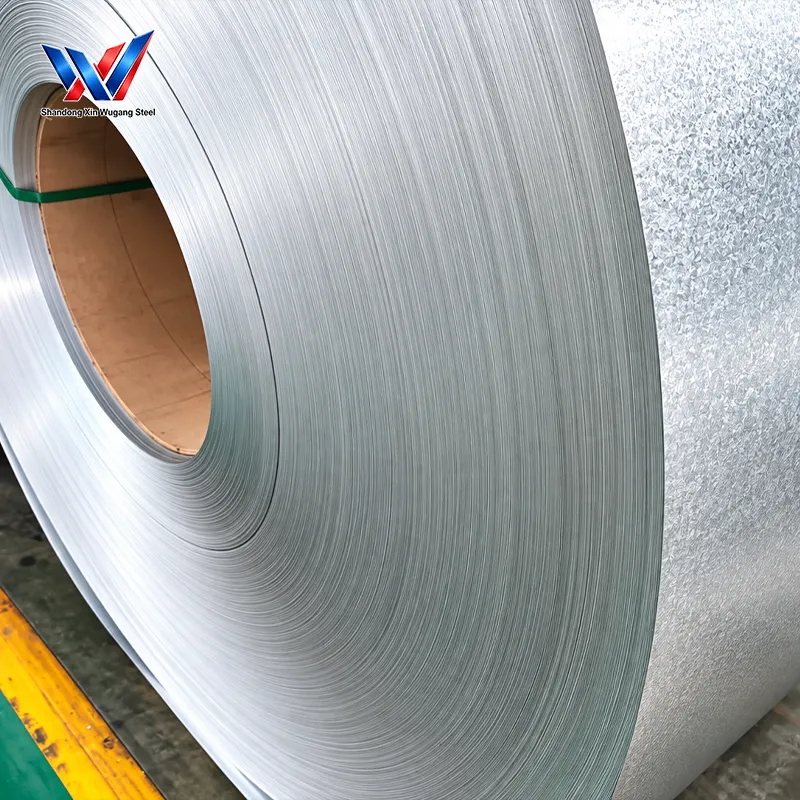

Galvalume Steel Coil - GL

Chemical & Mechanical Property Snapshot

Grade	Standard	C Max (%)	Mn Max (%)	P Max (%)	S Max (%)	Yield Strength Rp0.2 (MPa)	Tensile Strength Rm (MPa)	Elongation A80 (%)
DX56D+AZ	EN10346	0.05	0.30	0.05	0.020	170–240	270–330	≥38
Equivalent EDDS	ASTM A792	0.05	0.30	0.05	0.020	170–240	270–330	≥38
Equivalent SPCE+AZ	JIS G3321	0.05	0.30	0.05	0.020	170–240	270–330	≥38
Equivalent DC05+AZ	GB/T14978	0.05	0.30	0.05	0.020	170–240	270–330	≥38

Detailed Technical Specifications

Specification Item	Available Specification
Product Name	DX56D+AZ Galvalume Steel Coil
Alternative Name	DX56D+AZ Extra Deep Draw Aluzinc GL Coil
Manufacturing Process	Hot-dip 55% Al-Zn-Si coating on ultra low carbon cold rolled substrate
Coating Composition	55% Aluminum / 43.4% Zinc / 1.6% Silicon
Applicable Standards	EN10346, ASTM A792/A792M, JIS G3321, GB/T14978
Grade	DX56D+AZ
Equivalent Grades	ASTM EDDS; JIS SPCE+AZ; GB DC05+AZ
Thickness Range	0.18–2.5 mm
Mainstream Thickness	0.2–1.5 mm
Standard Widths	914 / 1000 / 1219 / 1250 mm
Coating Weight	AZ50, AZ70, AZ100, AZ150, AZ200 g/m²
Surface Treatment	Passivation / Chromium-Free Passivation / Oil-Based Anti-Rust / Anti-Fingerprint AF
Standard Coil Inner Diameter	508 mm

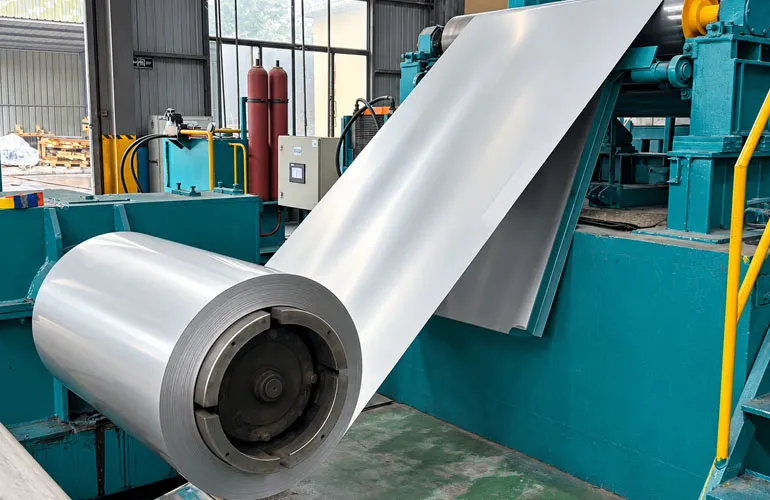

Processing Options	Slitting into narrow strips, Cut-to-length flat sheets
Quality Documentation	Mill Test Certificate (MTC), third-party inspection available
Packing	Waterproof paper + galvanized steel strap + seaworthy export wooden pallet
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Product Comparison Table

Specification / Feature	DX56D+AZ Galvalume Steel Coil	Equivalent Grade Cross Reference	Buyer Selection Consideration
Common Name	DX56D+AZ Extra Deep Draw Aluzinc GL Coil	EN:DX56D+AZ; ASTM:EDDS; JIS:SPCE+AZ; GB:DC05+AZ	Top level extra deep drawing grade for complex stamping
Base Material	Ultra Low Carbon Cold Rolled Steel	Ultra low carbon mild steel	Best ductility, lowest stamping crack risk
Coating System	55% Al +43.4% Zn +1.6% Si	Aluzinc alloy coating	Strong coating adhesion after heavy forming
Standards	EN10346	ASTM A792/A792M, JIS G3321, GB/T14978	Full international standard compliance
Thickness	0.18–2.5 mm	0.2–1.5mm mainstream	Custom thickness for precision stamping
Width	914 /1000 /1219 /1250 mm	Slit narrow strip available	Custom width for stamping mould
Coating Weight	AZ50~AZ200 g/m²	AZ100+ recommended for coastal application	Higher AZ for harsh corrosive environment
Surface Treatment	Passivation / Cr-Free Passivation / Oil / Anti-Fingerprint AF	AF surface prevent handprint	Suitable for manual handling & stamping process
Coil ID	508 mm standard	Custom ID available	Compatible with standard uncoiler
Processing	Slitting, Cut-To-Length	Custom dimension service	Produce narrow aluzinc strip & cut sheet
Typical Applications	Ultra deep stamped shell, complex formed profiles, home appliance housing, precision deep drawing parts	Heavy deep drawing & complicated stamping	Select DX56D+AZ for deepest forming requirement

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

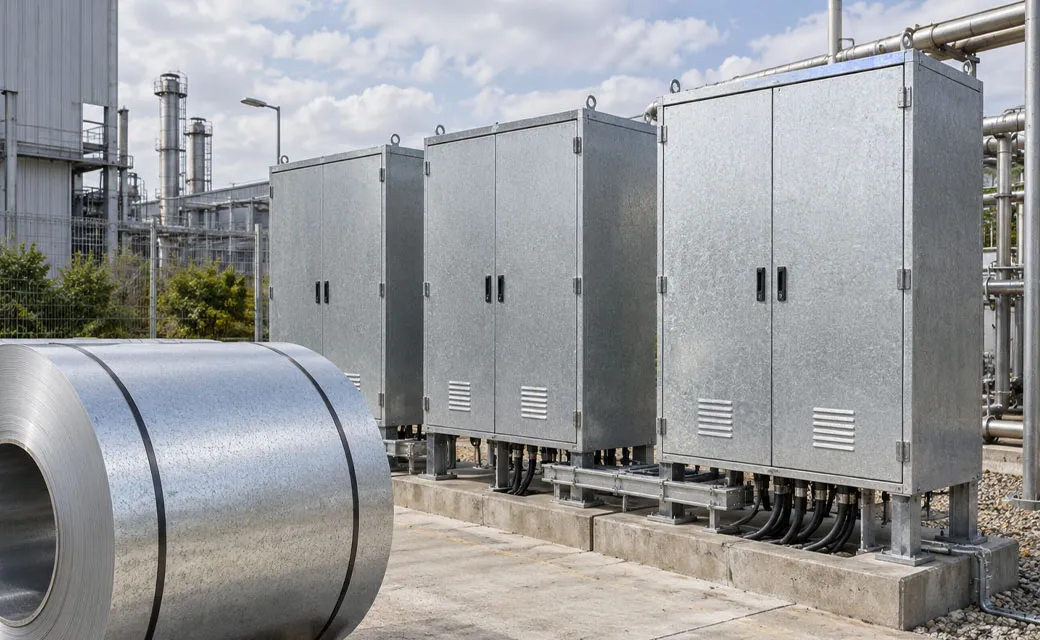

0_0000_Outdoor Electrical Equipment Enclosure (1)

Photovoltaic Brackets GL Steel

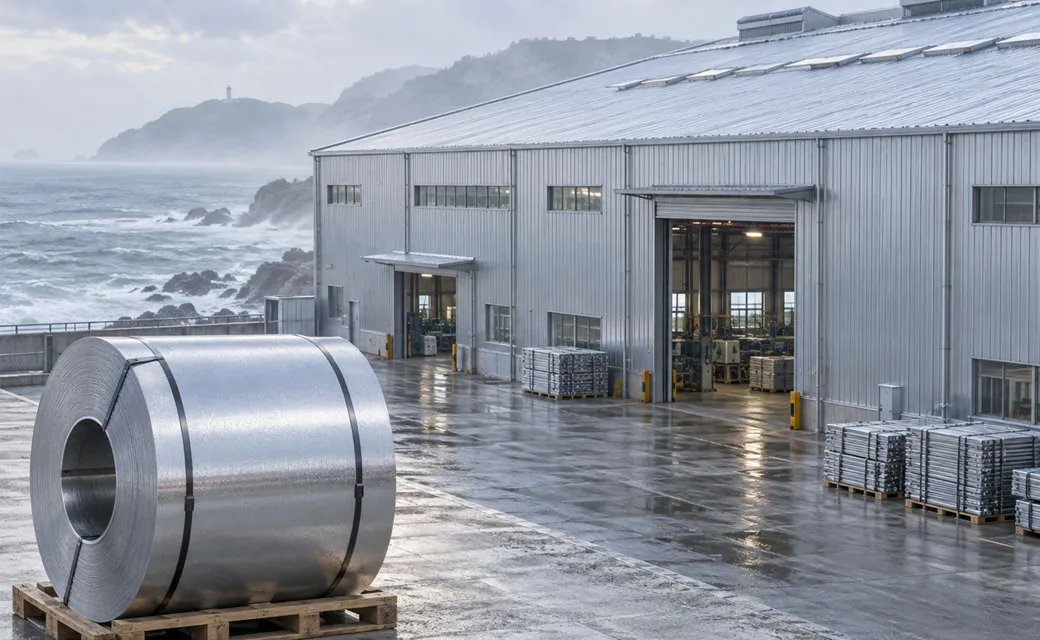

Factory Roofing and Wall Cladding in Coastal High-Salt-Spray Areas

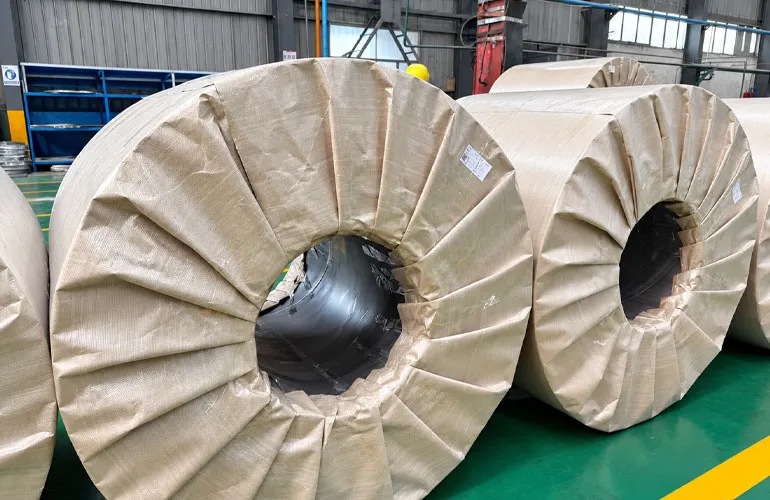

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is DX56D+AZ equivalent grade?

EN DX56D+AZ equivalent: ASTM EDDS, JIS SPCE+AZ, GB DC05+AZ, extra deep drawing grade.

What is difference between DX53D+AZ and DX56D+AZ?

DX56D+AZ carbon content lower, elongation higher (≥38%), it can handle deeper, more complex stamping parts than DX53D+AZ.

Can DX56D+AZ aluzinc coil be used for home appliance shell?

Yes, DX56D+AZ is widely used for home appliance deep drawn housing with excellent forming performance.

Do you support sample test before bulk order?

Yes, small sample pieces can be provided for customer stamping test.

What is MOQ and delivery time?

MOQ 5 ton, delivery time 7–15 working days after deposit received.
