G550 Prepainted Steel Sheet PPGI/PPGL | High Tensile Color Coated Plate

G550 high tensile substrate, high yield strength for large-span roof load-bearing projects
Available in both GI (PPGI) and Aluzinc GL (PPGL) base for different corrosion demands
High structural rigidity, thinner thickness can meet the roofing load requirement
PE/SMP/HDP/PVDF paint options, RAL full colors and multiple surface finishes
Stable coating performance, suitable for long span industrial building roof profiles

Product Overview

G550 Prepainted Steel Sheet (PPGI / PPGL) is high tensile strength color coated steel plate. The G550 substrate has minimum yield strength ≥500MPa, tensile strength ≥550MPa. It can be produced on hot-dip galvanized GI substrate (PPGI) or aluzinc GL substrate (PPGL).

G550 grade is specially designed for large-span roofing and load-bearing steel structure projects. Due to its ultra-high strength, designers can select thinner gauge sheet while maintaining structural capacity, reducing overall material cost. Coating structure: 2/1 or 2/2. Four paint systems: PE, SMP, HDP, PVDF. It supports RAL standard colors, custom gloss and textures.

G550 prepainted sheet is widely used for large factory long-span roof panels, steel structure workshop roofing, agricultural large-span greenhouse roofs and metal roof profiles.
Thickness range:0.30mm–0.8mm; Width:700–1250mm, supplied in coil or cut sheet. Zinc coating Z60-Z275 for PPGI; AZ50~AZ150 for PPGL version.

Prepainted Steel Sheet - PPGI/PPGL

Chemical & Mechanical Property Snapshot

Grade	C Max (%)	Mn Max (%)	P Max (%)	S Max (%)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
G550	0.15	1.20	0.025	0.030	≥550	≥500	≥6

Detailed Technical Specifications

Category	Item
Product Name	G550 Prepainted Steel Sheet PPGI/PPGL
Product Type	High Tensile Prepainted Steel (PPGI or PPGL)
Substrate	Hot-dip Galvanized GI / Aluzinc GL
Base Grade	G550
Coating Weight	PPGI: Z60, Z80, Z100, Z275; PPGL: AZ50, AZ70, AZ100, AZ150
Coating Structure	2/1, 2/2
Paint System	PE, SMP, HDP, PVDF
Processing	Roll forming, profiling, cutting (limited deep stamping)
Supply Form	Prepainted coil or cut flat sheet
Thickness	0.30mm – 0.8mm
Width	700mm – 1250mm
Main Applications	Large-span factory roofing, steel structure workshop roof, long span greenhouse roof, load-bearing roof profiles
Color Standard	RAL, Pantone, custom color matching
Gloss Options	High gloss, Semi-gloss, Low gloss, Matte
Surface Finish	Smooth, Orange Peel
Quality Documents	Mill Test Certificate, third-party inspection optional
MOQ	Custom color MOQ negotiable
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Available Colors & Finishes – Prepainted Steel Sheet PPGI / PPGL

We offer prepainted steel sheet (PPGI) and prepainted galvanized steel sheet (PPGL) in a wide range of standard colors, gloss levels and surface finishes. Colors can be selected according to RAL standards, and custom color matching is available for special project requirements. Color consistency is controlled during coating, curing and inspection to reduce chromatic aberration in mass production.

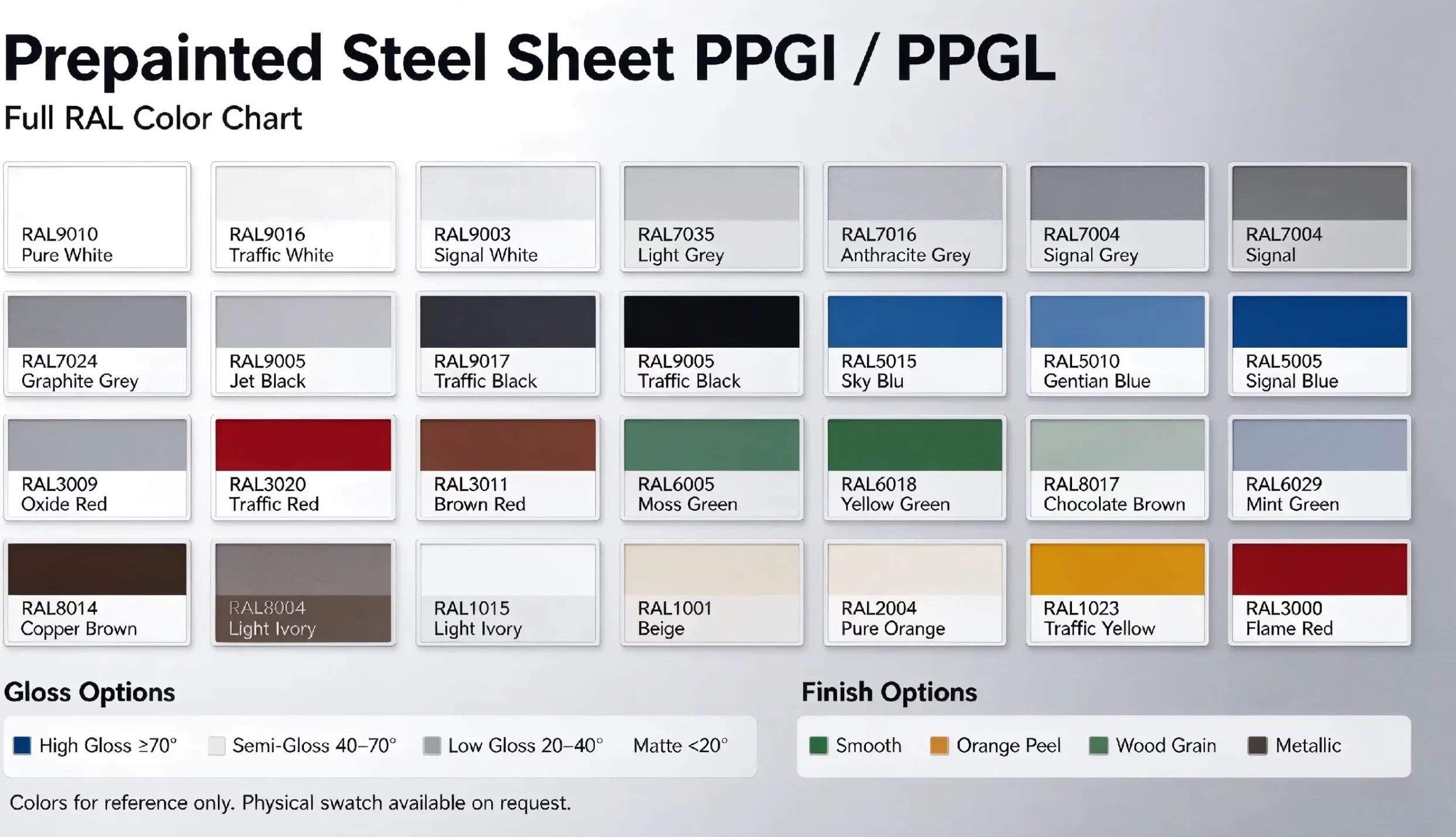

Popular Standard Colors for PPGI / PPGL

Color Family	RAL Code	Color Name	Common Applications
White	RAL 9010	Pure White	Roofing, wall panels, clean rooms, appliances
White	RAL 9016	Traffic White	Building facades, sandwich panels, interior panels
White	RAL 9003	Signal White	Decoration panels, equipment shells, lightweight panels
Grey	RAL 7035	Light Grey	Industrial buildings, warehouses, partition panels
Grey	RAL 7016	Anthracite Grey	Modern facades, trim panels, architectural profiles
Grey	RAL 7004	Signal Grey	Steel structure buildings, workshops, silos
Grey	RAL 7024	Graphite Grey	Heavy industrial buildings, equipment enclosures
Black	RAL 9005	Jet Black	Facade trim, edge panels, decorative profiles
Black	RAL 9017	Traffic Black	Industrial cladding, structural parts
Blue	RAL 5015	Sky Blue	Industrial roofs, workshop walls, agricultural buildings
Blue	RAL 5010	Gentian Blue	Factories, warehouses, steel structure buildings
Blue	RAL 5005	Signal Blue	Cladding panels, equipment covers
Red	RAL 3009	Oxide Red	Agricultural buildings, roof sheets, warning parts
Red	RAL 3020	Traffic Red	Warning panels, architectural trim
Red	RAL 3011	Brown Red	Industrial buildings, special profiles
Green	RAL 6005	Moss Green	Farm buildings, garden enclosures, rural roofs
Green	RAL 6018	Yellow Green	Decorative panels, landscape buildings
Green	RAL 6029	Mint Green	Interior panels, appliance panels
Brown	RAL 8017	Chocolate Brown	Residential roofs, villa panels, decorative facades
Brown	RAL 8004	Copper Brown	Industrial buildings, roof systems
Beige / Cream	RAL 1015	Light Ivory	Interior panels, ceilings, decorative profiles
Beige / Cream	RAL 1001	Beige	Building facades, housing projects
Orange	RAL 2004	Pure Orange	Warning cladding, equipment panels
Yellow	RAL 1023	Traffic Yellow	Warning parts, safety-related panels

Gloss Level Options

Gloss Type	Gloss Range	Description	Recommended Applications
High Gloss	≥ 70°	Bright surface, strong reflection	Appliance panels, furniture boards, indoor decoration
Semi-Gloss	40°–70°	Balanced shine, good appearance	General roofing, wall cladding, steel structure buildings
Low Gloss	20°–40°	Soft reflection, less glare	Facades, industrial buildings, noise reduction panels
Matte	< 20°	Very low reflection, modern look	Architectural panels, premium facade projects

Surface Finish Options

Finish Type	Description	Recommended Applications
Smooth	Smooth painted surface with a clean appearance	Roofing sheets, wall panels, sandwich panels
Matte Finish	Low-gloss, anti-glare surface with a modern visual effect	Building facades, industrial cladding
Orange Peel	Fine textured surface that helps hide minor scratches	Bending profiles, roofing, general construction
Wood Grain	Decorative wood imitation pattern	Interior panels, doors, furniture boards
Stone Grain	Stone-like textured finish	Decorative facades, wall cladding
Metallic / Pearl	Metallic reflective effect	High-end architectural panels, special design projects

Color Selection Guide by Application

Application	Recommended Color Series	Recommended Finish
Roofing Sheet	White, Grey, Blue, Green, Brown	Smooth / Orange Peel
Wall Cladding	White, Grey, Black, Blue, Green	Smooth / Matte
Sandwich Panel	White, Light Grey, Traffic White	Smooth
Industrial Building	Light Grey, Anthracite Grey, Sky Blue	Semi-Gloss / Low Gloss
Agricultural Building	Moss Green, Oxide Red, Sky Blue	Orange Peel
Residential / Villa Panel	Brown, Green, White, Beige	Smooth / Matte
Decoration Panel	White, Black, Grey, Wood Grain	Smooth / Wood Grain
Equipment Shell	White, Grey, Blue, Orange	High Gloss / Smooth

Important Notes for Color Ordering

Confirm the color standard**: Please specify RAL number, Pantone number or physical sample.

Check gloss requirement**: The same color will look different under high gloss, semi-gloss or matte finish.

Coating system matters**: PE, SMP, HDP and PVDF may affect final color appearance and weather resistance.

Color difference exists**: There may be slight color variation between different batches and between screen display and actual steel sheet.

Pre-production confirmation**: We recommend confirming a physical color swatch or trial sample before mass production.

Project specific colors**: For architectural projects, color grouping and color separation requirements should be confirmed in advance.

Product Comparison Table

Product Option	Substrate Grade	Coating Structure	Paint Type	Best Application Scenario
G550 PPGI PE	G550 GI	2/1 / 2/2	PE	Inland large span roof, low budget
G550 PPGI HDP	G550 GI	2/1 / 2/2	HDP	Long service inland large workshop roof
G550 PPGL SMP	G550 GL	2/1 / 2/2	SMP	Coastal large-span roof
G550 PPGL PVDF	G550 GL	2/1 / 2/2	PVDF	Severe coastal high tensile roof project
CGCC PPGI	CGCC GI	2/1 / 2/2	PE/SMP/HDP/PVDF	General forming, non-load bearing panels

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

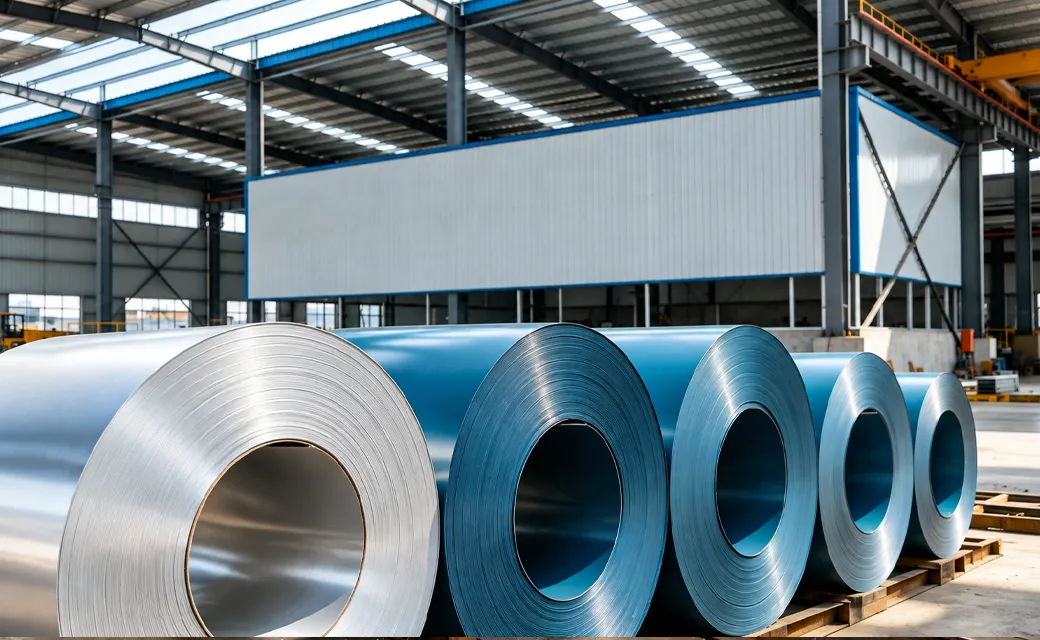

Industrial Factory Panels PPGI Steel

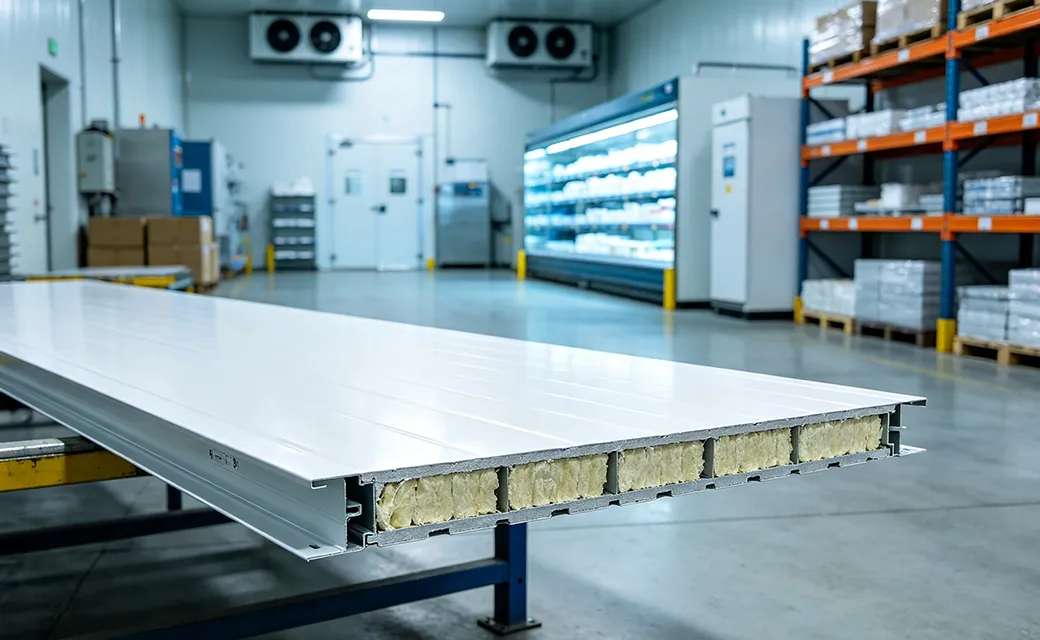

Cold Storage Panels PPGI Steel

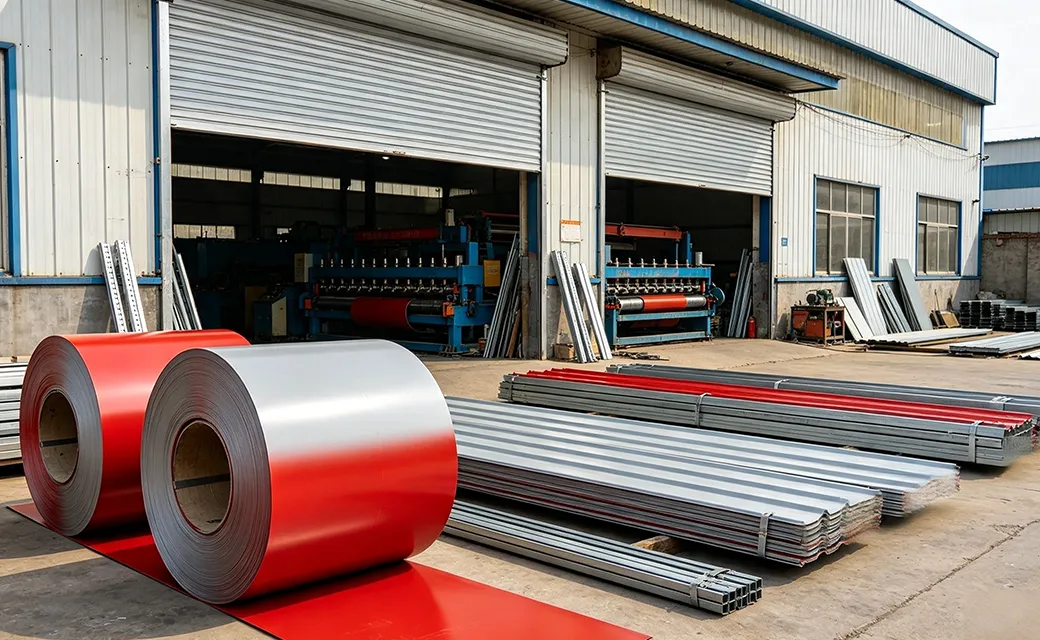

Rolling Shutters PPGI Steel

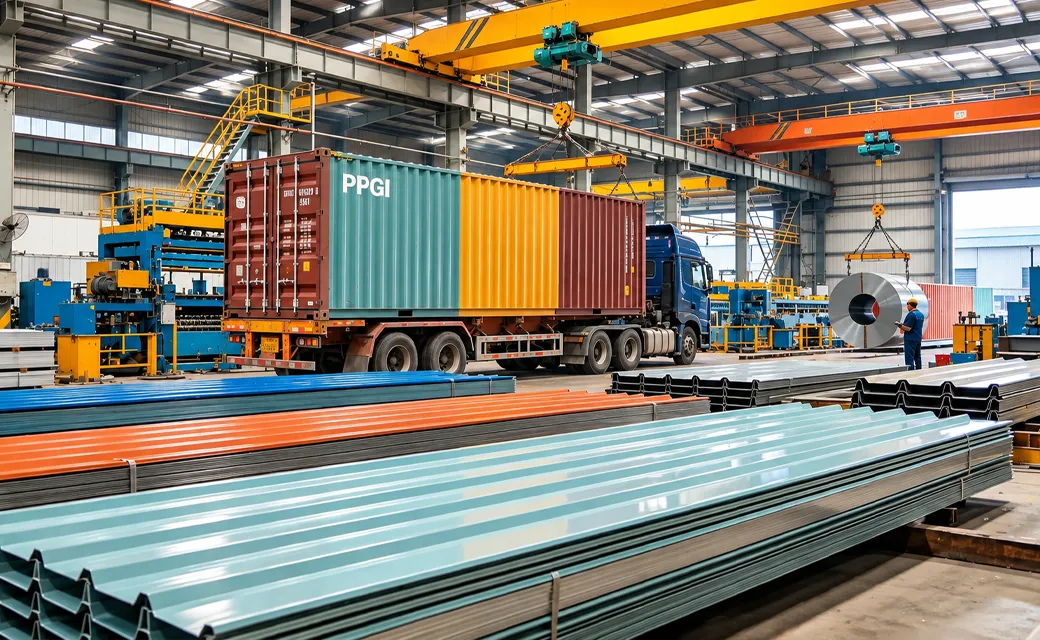

Container Sheets PPGI Steel

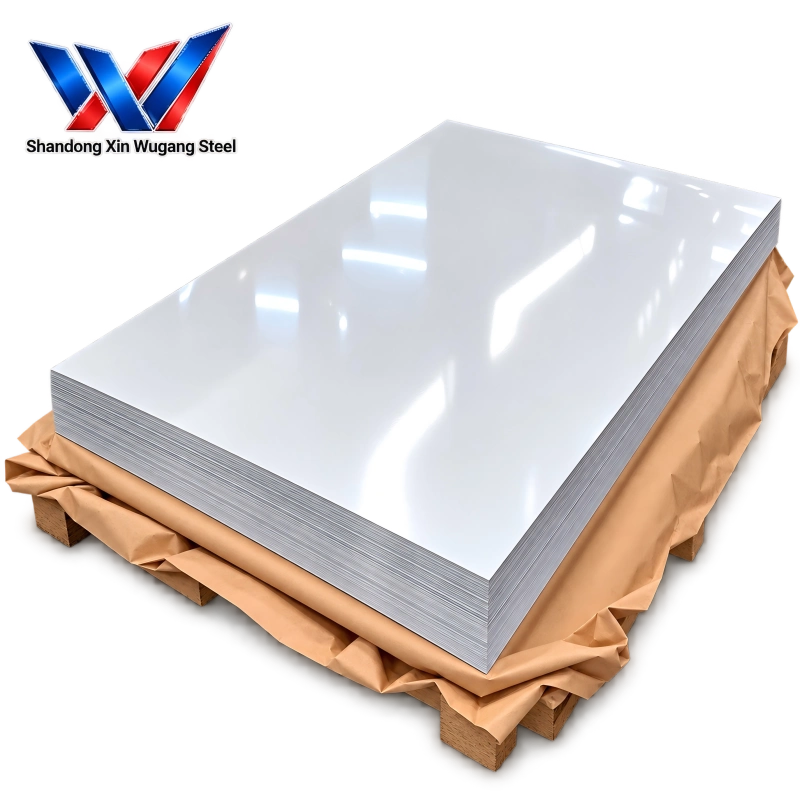

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is G550 prepainted steel mainly used for?

G550 is high tensile grade, specially for large-span load-bearing roofing, steel structure workshop roof profiles.

Can G550 PPGI do deep bending or stamping?

G550 is high strength low elongation grade, suitable for roll forming roof profiles, not recommended for deep stamping parts. Choose CGCC/TDC51D+AZ if heavy forming required.

What is the difference between G550 PPGI and G550 PPGL?

G550 PPGI uses galvanized GI substrate for inland; G550 PPGL uses aluzinc GL substrate for coastal high humidity environment.

What thickness is commonly used for G550 roofing sheet?

Popular thickness 0.4mm, 0.5mm, 0.6mm. High tensile property allows thin gauge for long span roof.

Can you provide MTC certificate for G550 prepainted steel?

Yes, Mill Test Certificate will be provided for each batch, third-party inspection can be arranged.

What paint type is recommended for G550 metal roof?

SMP is the most popular cost-effective choice; HDP for longer outdoor lifespan; PVDF is for premium anti-fade requirement.
