YX35-125-750 PPGI Color Coated Roof Panel | DX51D Prepainted Galvanized High Rib Roof Sheet

High rib YX35-125-750 profile design, excellent load bearing and drainage performance
DX51D galvanized base substrate, stable mechanical property and strong anti-rust performance
Multiple paint options PE, HDP, SMP, PVDF, long service life for outdoor exposure
Wide range of RAL standard colors, customizable length to reduce onsite waste
Easy installation, lightweight structure, saves labor cost for large roofing projects

Product Overview

YX35-125-750 PPGI color coated roof panel is a widely used high rib corrugated metal roofing sheet, manufactured from DX51D prepainted galvanized steel substrate. The profile height is 35mm, effective width 750mm, raw material width 1250mm after roll forming. This high rib profile delivers superior water drainage capacity, ideal for regions with heavy rainfall.

The base material DX51D hot-dip galvanized steel provides reliable galvanized zinc layer protection, while the top side organic coating acts as the second barrier against UV radiation, oxidation and chemical corrosion. We supply different coating systems including regular PE polyester, HDP high durable polyester, SMP silicon modified polyester and PVDF fluorocarbon coating to meet different service lifespan requirements.

Our YX35-125-750 PPGI roof panels support RAL standard color selection and custom cutting length. It is commonly applied for factory workshop roofing, warehouse roof, large commercial buildings, stadium canopy and agricultural barn roofing. All panels can be produced with strict tolerance control, easy to overlap and connect during installation.

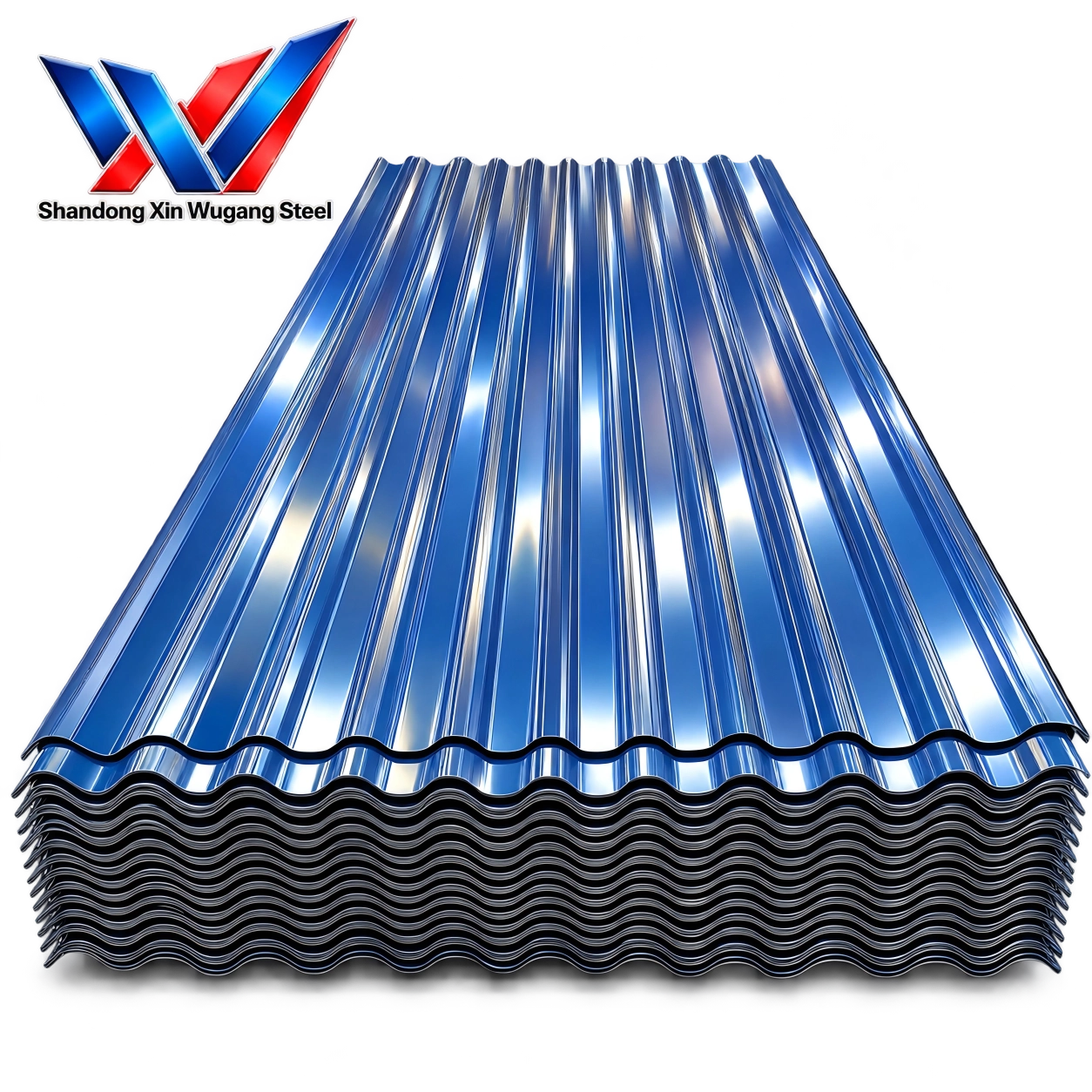

PPGI/PPGL Color Coated Corrugated Roof Sheet

Chemical & Mechanical Property Snapshot

Item	Specification
Substrate Grade	DX51D
Base Material	Hot-dip galvanized steel GI
Yield Strength	250 MPa min
Tensile Strength	270–500 MPa
Coating Mass (Zinc)	Z80-Z275 optional
Paint Coating	PE / HDP / SMP / PVDF
Elongation	≥22%
Substrate Chemical Composition	C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%

Detailed Technical Specifications

Parameter	Details
Profile Model	YX35-125-750
Effective Cover Width	750 mm
Raw Coil Width	1250 mm
Rib Height	35 mm
Material Thickness	0.4mm ~ 1.2mm
Substrate	DX51D Galvanized Steel (GI)
Coating Type	PPGI Prepainted Coating
Available Color	Full RAL colors, custom color available
Length	Custom cut according to client requirement
Surface Treatment	Top paint + back protective paint
Application	Factory roof, warehouse, commercial building, canopy
Packaging	Waterproof packing with steel strips for sea shipment

Supporting Documents	Factory Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Available Roof Corrugated Profiles

We supply full series PPGI / PPGL corrugated roof profiles. Each waveform has different wave height, effective width and mechanical performance. Suitable for roofing, wall cladding, drainage and different wind load requirements. All profiles can be customized with various color coating.

Profile Model	Profile Type	Wave Height	Effective Cover Width	Raw Coil Width	Main Features	Typical Applications
YX8-31.5-882	Low Rib Trapezoidal	8 mm	882 mm	1000 mm	Lightweight, economical, easy forming	Inner lining, temporary enclosure, small wall panels
YX15-225-900	Low Trapezoidal	15 mm	900 mm	1000 mm	Low wave design, good cost performance	Agricultural sheds, small workshops, temporary buildings
YX18-76-988	Small Arc Corrugated	18 mm	988 mm	1200 mm	Smooth arc, wide coverage	Farm buildings, poultry houses, simple roofing
YX25-210-840	Medium Trapezoidal	25 mm	840 mm	1000 mm	Standard load-bearing profile	Factory roofs, warehouse walls, industrial buildings
YX28-205-820	Medium-High Trapezoidal	28 mm	820 mm	1000 mm	Higher rigidity, good snow load resistance	Warehouses, workshops, medium-span buildings
YX35-125-750	High Rib Trapezoidal	35 mm	750 mm	1000 mm	Excellent drainage, strong wind resistance	Industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	Wide-Pitch High Rib	35 mm	860 mm	1000 mm	Large support span	Factory roofs, logistics warehouses
YX51-380-760	Deep High Rib	51 mm	760 mm	1000 mm	Heavy load capacity, high wind resistance	Large industrial buildings, heavy snow regions
YX66-394-788	Standing Seam	66 mm	788 mm	1000 mm	360° lock seam, hidden fastening, superior waterproof performance	Public buildings, industrial roofs, coastal high-wind projects
840 Arc Corrugated	Circular Arc Wave	20 mm	840 mm	1000 mm	Classic arc design, smooth drainage	Farmhouses, residential roofs, simple buildings
900 Arc Corrugated	Circular Arc Wave	18 mm	900 mm	1000 mm	Widely used, cost-effective	Residential roofs, warehouse wall panels
1050 Wide Arc	Wide Arc Corrugated	18 mm	1050 mm	1200 mm	Wide coverage, fewer overlaps	Large-area roofs, temporary buildings
1080 Wide Arc	Wide Arc Corrugated	20 mm	1080 mm	1250 mm	Large effective width, fast installation	Commercial roofs, logistics centers
Antique Glazed Tile	Decorative Glazed Tile	30 mm	800 mm	1000 mm	Traditional tile appearance, decorative effect	Villas, scenic areas, tourism buildings, residential roofs

Color Options Gallery

We provide standard colors and full RAL color customization for PPGI/PPGL corrugated roof sheets. Different coating types support different color retention service life.

Color Name	RAL Reference	Recommended Coating	Main Applications
White	RAL 9016	PE / SMP / HDP / PVDF	Residential roofs, commercial buildings, workshops
Ivory	RAL 1013	PE / SMP / HDP / PVDF	Villas, scenic buildings, high-end residential projects
Grey	RAL 9002	PE / SMP / HDP / PVDF	Industrial buildings, warehouses, office buildings
Beige	RAL 1015	PE / SMP / HDP / PVDF	Rural residential buildings, agricultural buildings
Yellow	RAL 1023	PE / SMP / HDP / PVDF	Warehouses, temporary buildings, industrial facilities
Brick Red	RAL 3013	PE / SMP / HDP / PVDF	Residential roofs, villas, scenic areas
Bright Red	RAL 3020	PE / SMP / HDP / PVDF	Commercial buildings, workshops, decorative roofs
Blue	RAL 5010	PE / SMP / HDP / PVDF	Factory roofs, warehouses, industrial buildings
Dark Blue	RAL 5017	HDP / PVDF	Coastal buildings, industrial roofs, high UV areas
Green	RAL 6005	PE / SMP / HDP / PVDF	Agricultural buildings, greenhouses, scenic areas
Chocolate	RAL 8017	HDP / PVDF	Villas, residential roofs, traditional-style buildings
Black	RAL 9005	HDP / PVDF	Modern buildings, industrial roofs, high-end projects

Product Comparison Table

Item	YX35-125-750 PPGI Roof Panel	Low Rib Corrugated Sheet	PPGL Roof Panel
Substrate	DX51D GI PPGI	DX51D GI PPGI	DX51D GL PPGL
Rib Height	35mm	18~25mm	35mm optional
Effective Width	750mm	840 /988mm	750mm
Anti-corrosion	Good	Normal	Excellent
Drainage Performance	Excellent	Medium	Excellent
Suitable Climate	Rainy area, industrial zone	Dry & mild climate	Coastal salt environment
Unit Cost	Medium	Low	Higher

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Modern Industrial Factories ppgi corrugated steel

New Rural Construction PPGI Corrugated Steel

Warehousing and Logistics Centers PPGI Corrugated Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is YX35-125-750 mean for the roof panel?

YX35-125-750: 35mm rib height, 1250mm original coil width, 750mm effective covering width after roll forming.

What substrate grade for YX35-125-750 PPGI roof sheet?

Standard substrate is DX51D hot dip galvanized steel, stable for roll forming without cracking.

What coating options can I choose for this high rib roof panel?

PE, HDP, SMP and PVDF coating are available, PVDF for longest anti-fade performance.

Can we select custom RAL color for YX35-125-750 roofing panel?

Yes, we support full RAL color system, we can produce according to your color code.

What projects are suitable for these corrugated roof sheets?

Normally max length 12m, longer length can be discussed, but we suggest suitable length for container loading.

What is the typical application of YX35-125-750 high rib roof panel?

It is widely used for factory workshop, logistics warehouse, shopping mall roof, large canopy and agricultural buildings.
