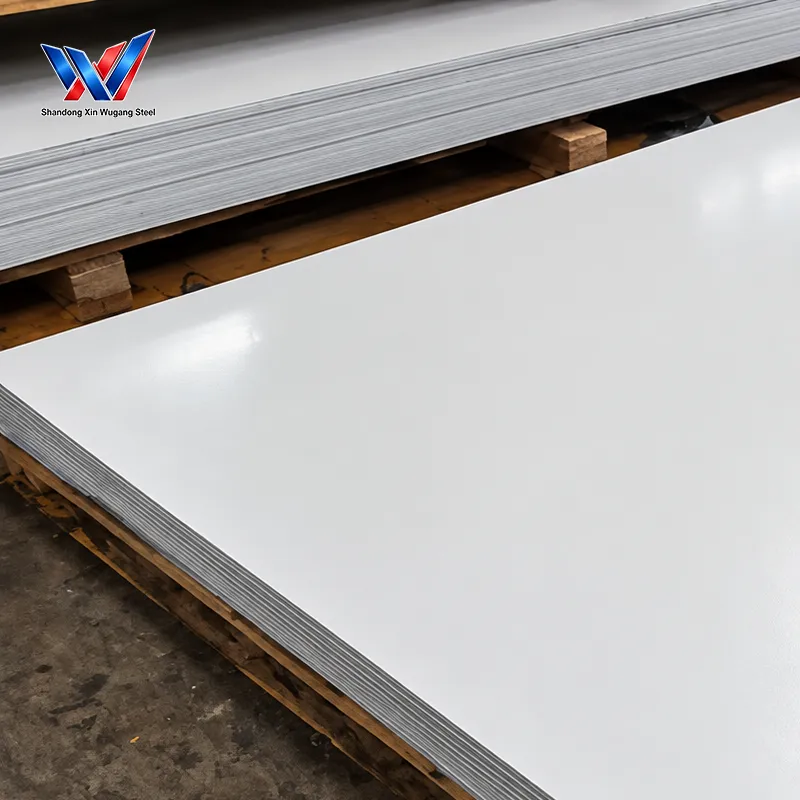

Prepainted Steel Sheet (PPGI/PPGL)

Prepainted Steel Sheet - PPGI/PPGL

Four kinds of topcoat paints match different service life and outdoor climate environments.
Double-side coating structure enhances anti-corrosion ability on both surfaces of steel plate.
Complete RAL color palette, customizable color and gloss for architectural decoration demands.
High-strength G550 grade available for large-span steel structure load-bearing projects.
Firm paint adhesion, no peeling during bending, stamping and profiling processing.

Product Overview

Prepainted Steel Sheet (PPGI / PPGL) is a color-coated steel material produced by applying an organic paint coating to galvanized steel (GI) or Aluzinc steel (GL) substrates. It combines corrosion protection, weather resistance and decorative appearance for industrial construction and architectural applications.

The product is available in CGCC, TDC51D+AZ and G550 grades. CGCC is suitable for conventional forming and decorative components, TDC51D+AZ provides improved salt-spray resistance for coastal and humid environments, while G550 is designed for large-span roofing and load-bearing steel structures.

Two coating structures, 2/1 and 2/2, and four paint systems—PE, SMP, HDP and PVDF—provide flexible options for different service environments. The product also supports RAL color selection, customized color, gloss and coating thickness, making it suitable for factory roofs, wall cladding, cold storage boards, rolling shutters, container panels and agricultural greenhouses.

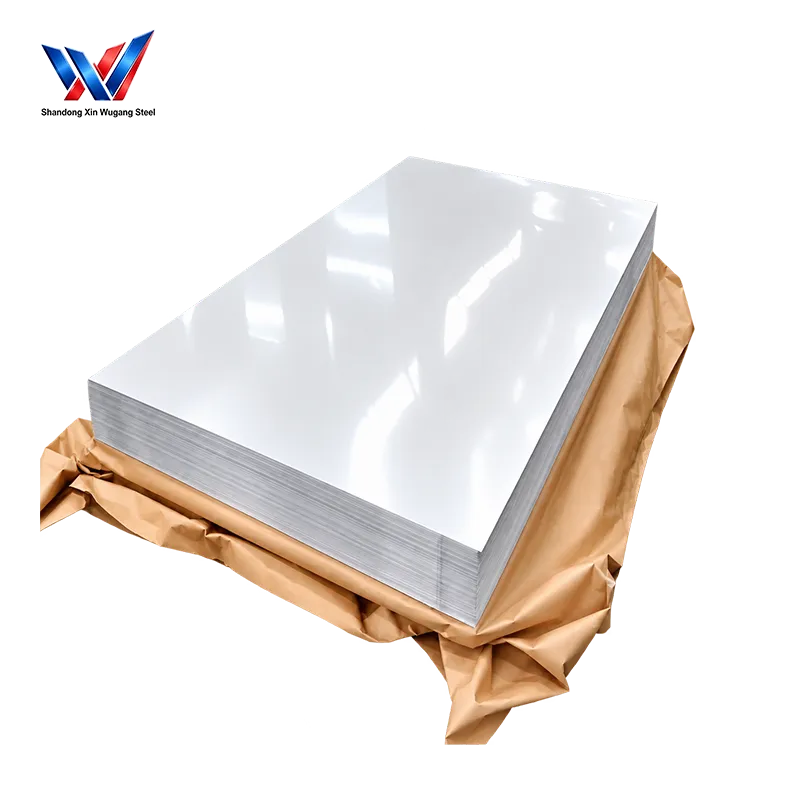

Prepainted Steel Sheet - PPGI/PPGL

Chemical & Mechanical Property Snapshot

Grade	C Max (%)	Mn Max (%)	P Max (%)	S Max (%)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
CGCC	0.12	0.50	0.020	0.025	270–410	140–300	≥24
TDC51D+AZ	0.12	0.60	0.025	0.030	270–410	140–300	≥24
G550	0.15	1.20	0.025	0.030	≥550	≥500	≥6

Detailed Technical Specifications

Category	Item
Product Name	Prepainted Steel Sheet (PPGI / PPGL)
Product Type	Prepainted / Color Coated Steel Sheet
Substrate	Galvanized Steel (GI) / Aluzinc Steel (GL)
Main Grades	CGCC, TDC51D+AZ, G550
Coating Structure	2/1, 2/2
Processing	Bending, Profiling, Rolling, Stamping
Supply Form	Prepainted Steel Coils and Sheets
Main Applications	Factory Roof Panels, Wall Cladding, Cold Storage Boards, Rolling Shutters, Container Wall Plates, Agricultural Greenhouses
Quality Documents	Quality Certification Documents
Minimum Quantity	Custom color MOQ is negotiable based on thickness, width and order quantity
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing
Color Standard	RAL, Pantone, or customer physical sample
Custom Color	Available upon request
Color Confirmation	Physical color swatch or sample panel can be provided before production
Color Tolerance	AE ≤2.0 for standard orders; tighter tolerance available for high-end projects
Coating System	PE, SMP, HDP, PVDF ca bselectedacordin color and durabilityrequirement

Available Colors & Finishes – Prepainted Steel Sheet PPGI / PPGL

We offer prepainted steel sheet (PPGI) and prepainted galvanized steel sheet (PPGL) in a wide range of standard colors, gloss levels and surface finishes. Colors can be selected according to RAL standards, and custom color matching is available for special project requirements. Color consistency is controlled during coating, curing and inspection to reduce chromatic aberration in mass production.

Popular Standard Colors for PPGI / PPGL

Color Family	RAL Code	Color Name	Common Applications
White	RAL 9010	Pure White	Roofing, wall panels, clean rooms, appliances
White	RAL 9016	Traffic White	Building facades, sandwich panels, interior panels
White	RAL 9003	Signal White	Decoration panels, equipment shells, lightweight panels
Grey	RAL 7035	Light Grey	Industrial buildings, warehouses, partition panels
Grey	RAL 7016	Anthracite Grey	Modern facades, trim panels, architectural profiles
Grey	RAL 7004	Signal Grey	Steel structure buildings, workshops, silos
Grey	RAL 7024	Graphite Grey	Heavy industrial buildings, equipment enclosures
Black	RAL 9005	Jet Black	Facade trim, edge panels, decorative profiles
Black	RAL 9017	Traffic Black	Industrial cladding, structural parts
Blue	RAL 5015	Sky Blue	Industrial roofs, workshop walls, agricultural buildings
Blue	RAL 5010	Gentian Blue	Factories, warehouses, steel structure buildings
Blue	RAL 5005	Signal Blue	Cladding panels, equipment covers
Red	RAL 3009	Oxide Red	Agricultural buildings, roof sheets, warning parts
Red	RAL 3020	Traffic Red	Warning panels, architectural trim
Red	RAL 3011	Brown Red	Industrial buildings, special profiles
Green	RAL 6005	Moss Green	Farm buildings, garden enclosures, rural roofs
Green	RAL 6018	Yellow Green	Decorative panels, landscape buildings
Green	RAL 6029	Mint Green	Interior panels, appliance panels
Brown	RAL 8017	Chocolate Brown	Residential roofs, villa panels, decorative facades
Brown	RAL 8004	Copper Brown	Industrial buildings, roof systems
Beige / Cream	RAL 1015	Light Ivory	Interior panels, ceilings, decorative profiles
Beige / Cream	RAL 1001	Beige	Building facades, housing projects
Orange	RAL 2004	Pure Orange	Warning cladding, equipment panels
Yellow	RAL 1023	Traffic Yellow	Warning parts, safety-related panels

Gloss Level Options

Gloss Type	Gloss Range	Description	Recommended Applications
High Gloss	≥ 70°	Bright surface, strong reflection	Appliance panels, furniture boards, indoor decoration
Semi-Gloss	40°–70°	Balanced shine, good appearance	General roofing, wall cladding, steel structure buildings
Low Gloss	20°–40°	Soft reflection, less glare	Facades, industrial buildings, noise reduction panels
Matte	< 20°	Very low reflection, modern look	Architectural panels, premium facade projects

Surface Finish Options

Finish Type	Description	Recommended Applications
Smooth	Smooth painted surface with a clean appearance	Roofing sheets, wall panels, sandwich panels
Matte Finish	Low-gloss, anti-glare surface with a modern visual effect	Building facades, industrial cladding
Orange Peel	Fine textured surface that helps hide minor scratches	Bending profiles, roofing, general construction
Wood Grain	Decorative wood imitation pattern	Interior panels, doors, furniture boards
Stone Grain	Stone-like textured finish	Decorative facades, wall cladding
Metallic / Pearl	Metallic reflective effect	High-end architectural panels, special design projects

Color Selection Guide by Application

Application	Recommended Color Series	Recommended Finish
Roofing Sheet	White, Grey, Blue, Green, Brown	Smooth / Orange Peel
Wall Cladding	White, Grey, Black, Blue, Green	Smooth / Matte
Sandwich Panel	White, Light Grey, Traffic White	Smooth
Industrial Building	Light Grey, Anthracite Grey, Sky Blue	Semi-Gloss / Low Gloss
Agricultural Building	Moss Green, Oxide Red, Sky Blue	Orange Peel
Residential / Villa Panel	Brown, Green, White, Beige	Smooth / Matte
Decoration Panel	White, Black, Grey, Wood Grain	Smooth / Wood Grain
Equipment Shell	White, Grey, Blue, Orange	High Gloss / Smooth

Important Notes for Color Ordering

Confirm the color standard**: Please specify RAL number, Pantone number or physical sample.

Check gloss requirement**: The same color will look different under high gloss, semi-gloss or matte finish.

Coating system matters**: PE, SMP, HDP and PVDF may affect final color appearance and weather resistance.

Color difference exists**: There may be slight color variation between different batches and between screen display and actual steel sheet.

Pre-production confirmation**: We recommend confirming a physical color swatch or trial sample before mass production.

Project specific colors**: For architectural projects, color grouping and color separation requirements should be confirmed in advance.

Product Comparison Table

Product Option	Substrate / Grade	Coating Structure	Paint System	Main Application
PPGI	Galvanized Steel / CGCC	2/1 or 2/2	PE / SMP / HDP / PVDF	Factory roofs, wall panels, general forming
PPGL	Aluzinc Steel / TDC51D+AZ	2/1 or 2/2	PE / SMP / HDP / PVDF	Coastal and humid applications
G550 Prepainted Steel	GI or GL / G550	2/1 or 2/2	PE / SMP / HDP / PVDF	Large-span roofing and load-bearing structures
PE Coated	GI or GL	2/1 or 2/2	PE	Indoor and mild outdoor applications
SMP Coated	GI or GL	2/1 or 2/2	SMP	Medium weather-resistance applications
HDP Coated	GI or GL	2/1 or 2/2	HDP	Long-term outdoor applications
PVDF Coated	GI or GL	2/1 or 2/2	PVDF	Harsh coastal and high-temperature environments

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Industrial Factory Panels PPGI Steel

Cold Storage Panels PPGI Steel

Rolling Shutters PPGI Steel

Container Sheets PPGI Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Prepainted Steel Sheet (PPGI / PPGL)?

It is steel sheet coated with an organic paint layer over a galvanized or Aluzinc steel substrate through a continuous coating process.

What grades are available for PPGI and PPGL?

The available grades are CGCC, TDC51D+AZ and G550, covering general forming, coastal applications and high-strength structural requirements.

Which paint system is suitable for outdoor applications?

PE, SMP, HDP and PVDF provide different weather-resistance levels. HDP is intended for long-term outdoor exposure, while PVDF is positioned for harsh coastal and high-temperature industrial environments.

Can the color and surface appearance be customized?

Yes. The product follows the RAL color system and supports customized color, gloss and coating thickness.

Can PPGI/PPGL be bent or profiled after coating?

Yes. The supplied information states that the coating remains firmly bonded during bending, corrugation profiling and stamping.
