PE PVDF HDP SMP Prepainted Steel Sheet | PPGI PPGL Coated Steel For Roof & Cladding

4 mainstream coating options PE / HDP / SMP / PVDF, flexible selection based on project service life
Dual substrate choices: PPGI galvanized GI and PPGL aluzinc GL, adapt inland or coastal environment
Strong UV resistance, anti-chalking and anti-fading, maintains color stability for decades
Complete RAL color range, customizable size, easy roll forming into roof panels or wall profiles
Factory controlled coating thickness, stable adhesion, not easy peel off during bending processing

Product Overview

PE PVDF HDP SMP prepainted steel sheet includes PPGI prepainted galvanized steel and PPGL prepainted aluzinc steel, widely adopted metal coated material for roof panels, wall cladding, partition panels and facade systems. Different paint systems deliver differentiated performance to satisfy diverse global construction environments.

PE (Polyester) is the standard economical coating, suitable for normal inland buildings with moderate UV exposure. HDP High Durability Polyester improves anti-fading property for long-term outdoor usage. SMP Silicon Modified Polyester features outstanding heat resistance, ideal for high-temperature roof environment. PVDF Fluorocarbon coating owns top-class UV and chemical resistance, the premium choice for coastal, heavy industrial and high-end architectural facades.

Substrate can be DX51D, DX52D galvanized GI for PPGI or DX51D aluzinc GL for PPGL. Zinc / aluzinc coating weight can be customized, including Z80-Z275 for GI and AZ50-AZ150 for GL. All prepainted steel sheets support RAL standard colors, custom color matching available for bulk orders. The coated steel can be further roll-formed into corrugated roof tiles, trapezoidal panels, wall cladding sheets. We strictly control coating adhesion to ensure no cracking or peeling during bending.

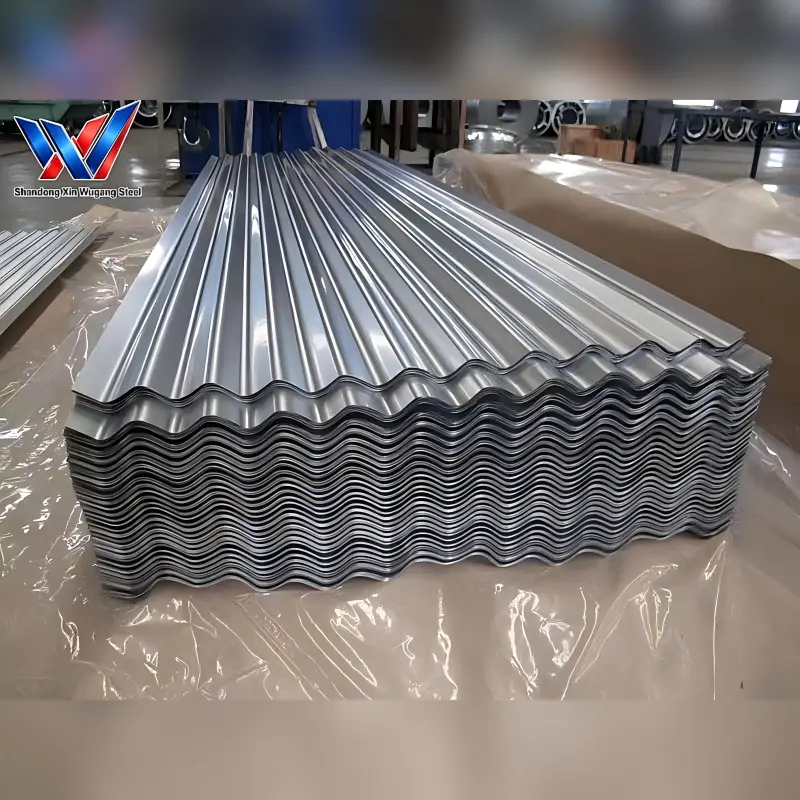

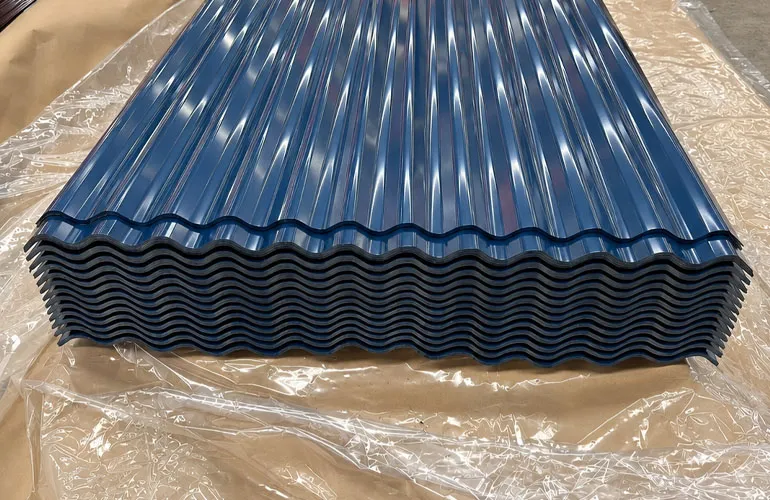

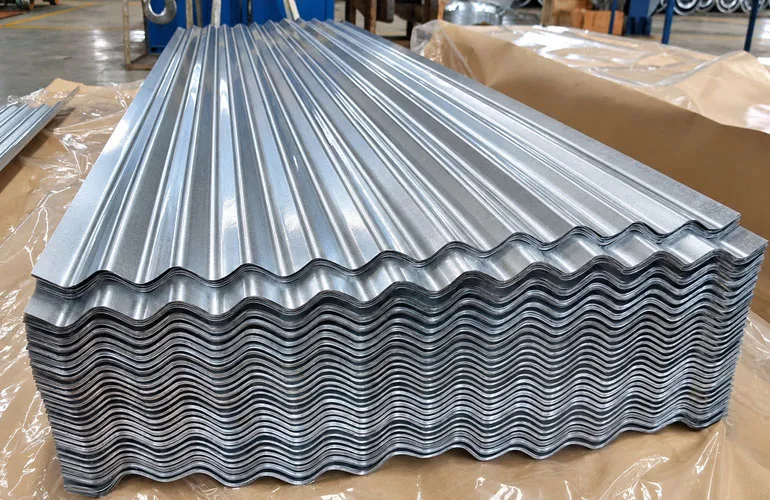

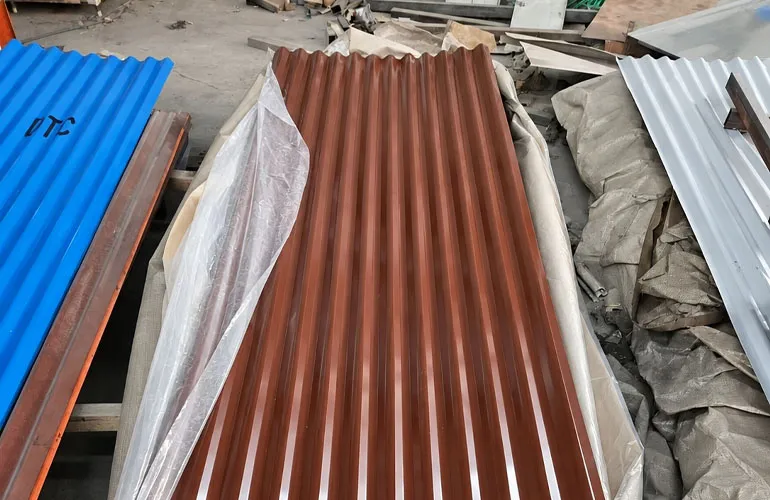

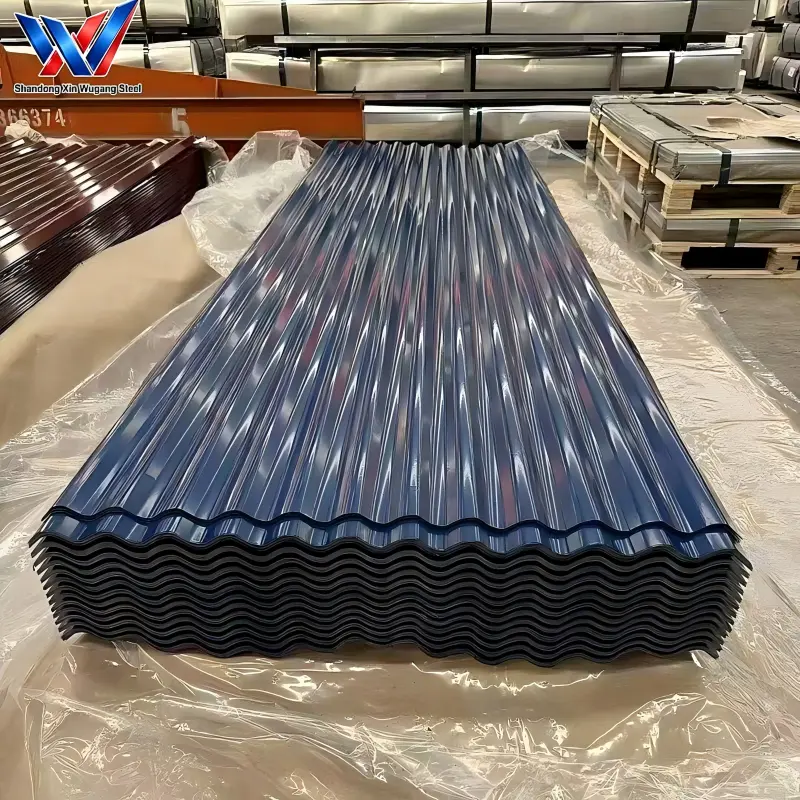

PPGI/PPGL Color Coated Corrugated Roof Sheet

Chemical & Mechanical Property Snapshot

Item	Specification
Substrate Grade	DX51D, DX52D
Base Material	GI Galvanized for PPGI, GL Aluzinc for PPGL
Yield Strength	250 MPa min
Tensile Strength	270–500 MPa
Zinc / Aluzinc Coating	Z80-Z275(GI), AZ50-AZ150(GL) optional
Paint System	PE / HDP / SMP / PVDF
Elongation	≥22%
Substrate Chemical Composition	C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%

Detailed Technical Specifications

Parameter	Details
Paint Type	PE, HDP, SMP, PVDF
Product Type	PPGI (GI substrate), PPGL (GL substrate)
Substrate Grades	DX51D, DX52D
Thickness	0.35mm ~ 1.2mm
Coating Thickness	Top coat: 20~25μm; Back coat: 5~10μm
Available Color	Full RAL colors, custom color available
Width	900mm,1000mm,1200mm,1250mm or customized
Length	Custom cut length
Application	Metal roof, wall cladding, facade, partition, roll formed profiles

Supporting Documents	Factory Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

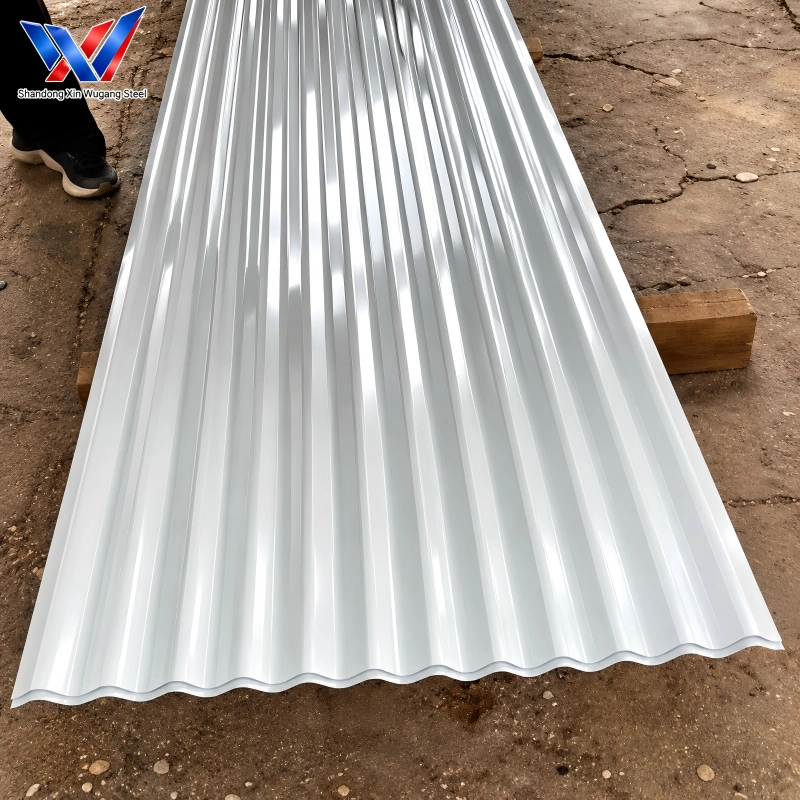

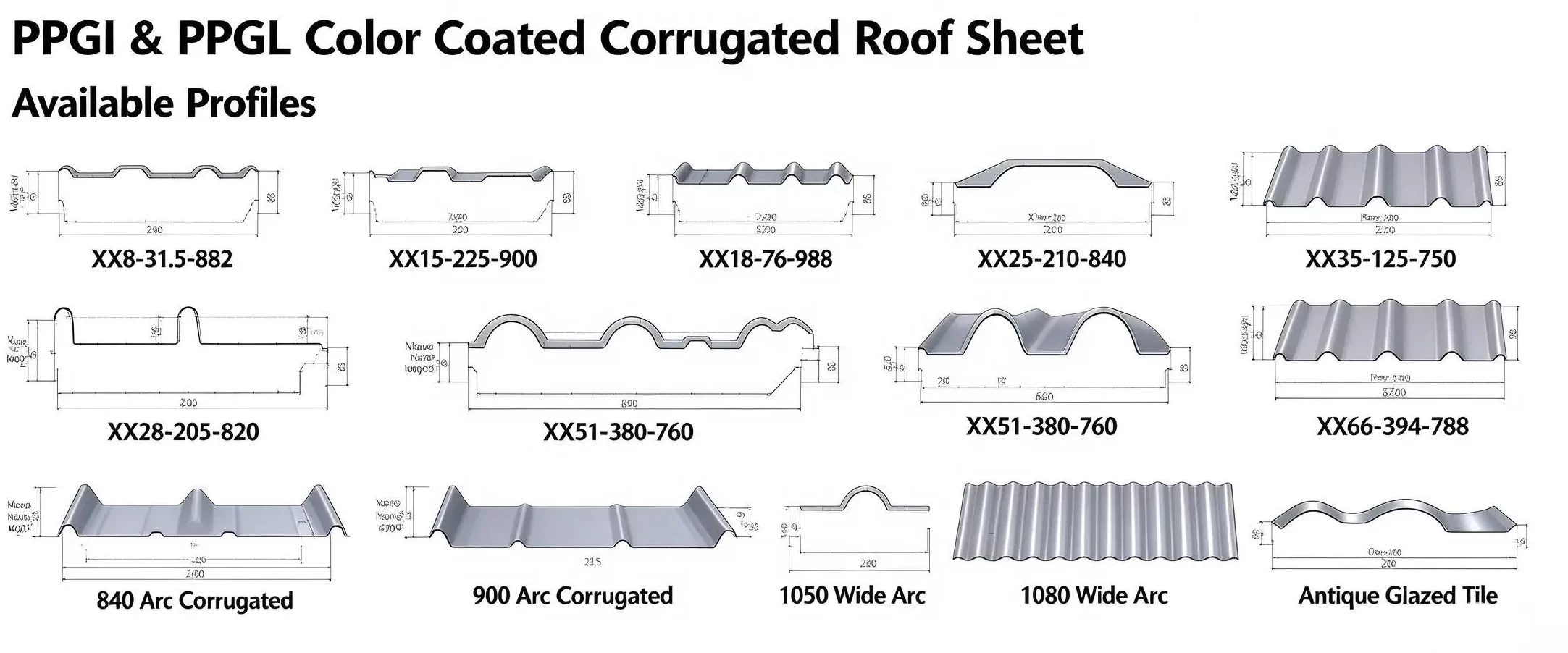

Available Roof Corrugated Profiles

We supply full series PPGI / PPGL corrugated roof profiles. Each waveform has different wave height, effective width and mechanical performance. Suitable for roofing, wall cladding, drainage and different wind load requirements. All profiles can be customized with various color coating.

Profile Model	Profile Type	Wave Height	Effective Cover Width	Raw Coil Width	Main Features	Typical Applications
YX8-31.5-882	Low Rib Trapezoidal	8 mm	882 mm	1000 mm	Lightweight, economical, easy forming	Inner lining, temporary enclosure, small wall panels
YX15-225-900	Low Trapezoidal	15 mm	900 mm	1000 mm	Low wave design, good cost performance	Agricultural sheds, small workshops, temporary buildings
YX18-76-988	Small Arc Corrugated	18 mm	988 mm	1200 mm	Smooth arc, wide coverage	Farm buildings, poultry houses, simple roofing
YX25-210-840	Medium Trapezoidal	25 mm	840 mm	1000 mm	Standard load-bearing profile	Factory roofs, warehouse walls, industrial buildings
YX28-205-820	Medium-High Trapezoidal	28 mm	820 mm	1000 mm	Higher rigidity, good snow load resistance	Warehouses, workshops, medium-span buildings
YX35-125-750	High Rib Trapezoidal	35 mm	750 mm	1000 mm	Excellent drainage, strong wind resistance	Industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	Wide-Pitch High Rib	35 mm	860 mm	1000 mm	Large support span	Factory roofs, logistics warehouses
YX51-380-760	Deep High Rib	51 mm	760 mm	1000 mm	Heavy load capacity, high wind resistance	Large industrial buildings, heavy snow regions
YX66-394-788	Standing Seam	66 mm	788 mm	1000 mm	360° lock seam, hidden fastening, superior waterproof performance	Public buildings, industrial roofs, coastal high-wind projects
840 Arc Corrugated	Circular Arc Wave	20 mm	840 mm	1000 mm	Classic arc design, smooth drainage	Farmhouses, residential roofs, simple buildings
900 Arc Corrugated	Circular Arc Wave	18 mm	900 mm	1000 mm	Widely used, cost-effective	Residential roofs, warehouse wall panels
1050 Wide Arc	Wide Arc Corrugated	18 mm	1050 mm	1200 mm	Wide coverage, fewer overlaps	Large-area roofs, temporary buildings
1080 Wide Arc	Wide Arc Corrugated	20 mm	1080 mm	1250 mm	Large effective width, fast installation	Commercial roofs, logistics centers

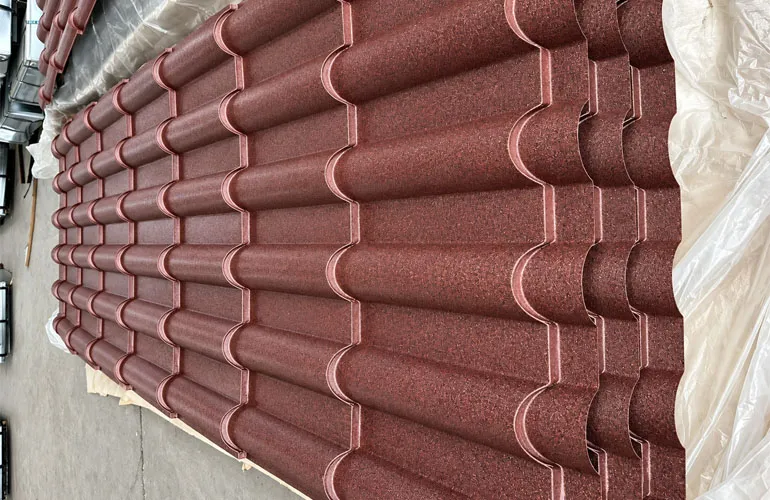

Antique Glazed Tile	Decorative Glazed Tile	30 mm	800 mm	1000 mm	Traditional tile appearance, decorative effect	Villas, scenic areas, tourism buildings, residential roofs

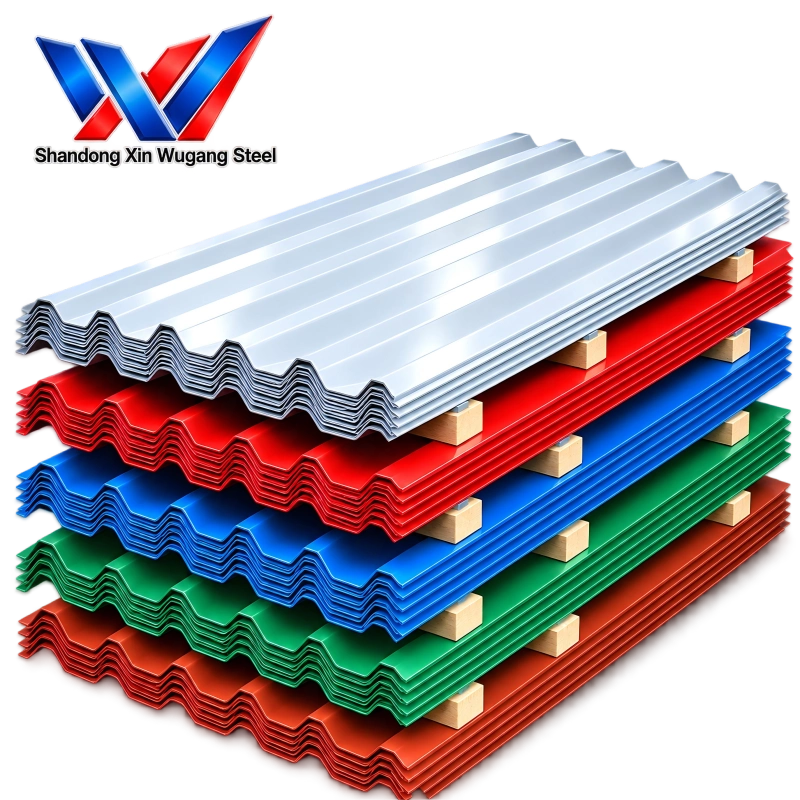

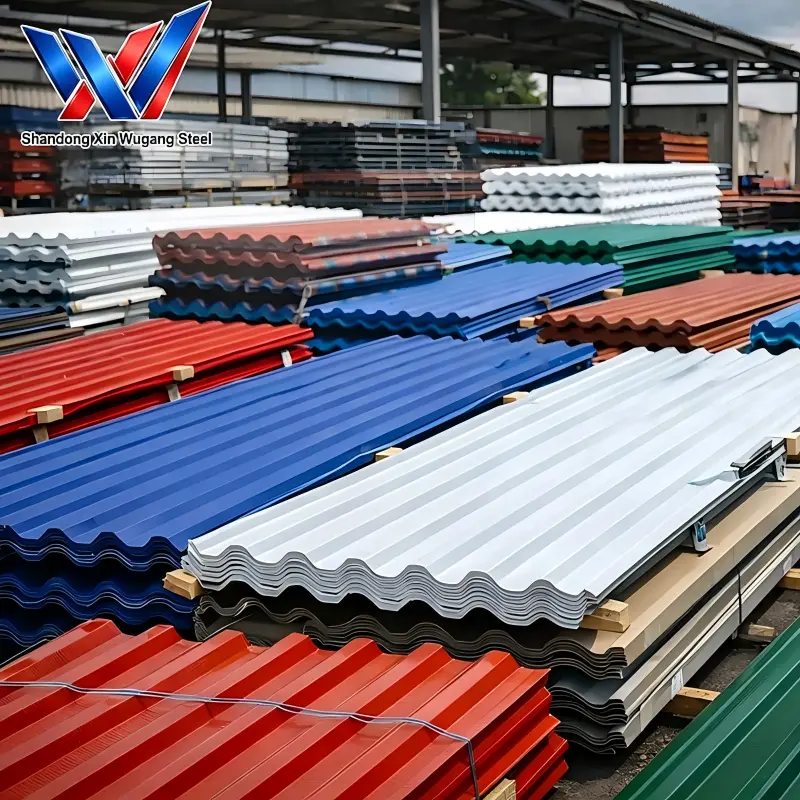

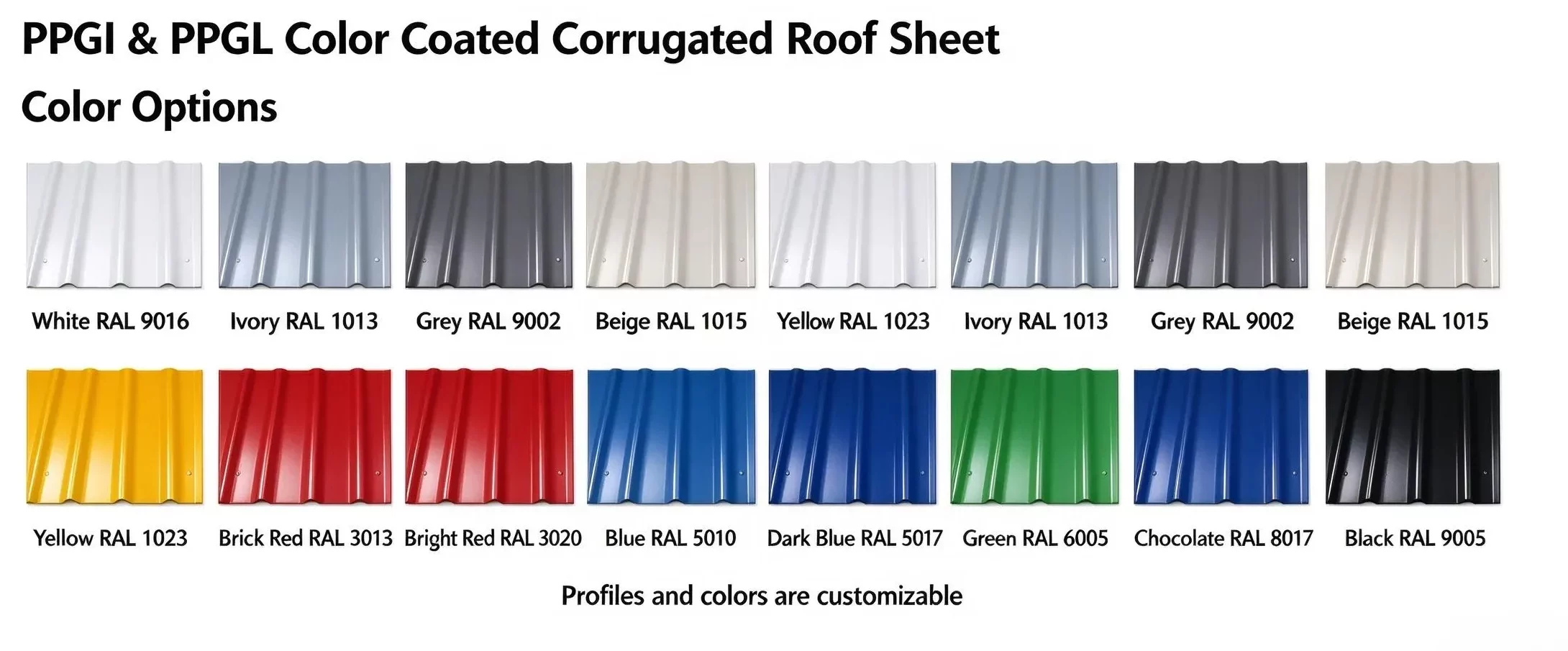

Color Options Gallery

We provide standard colors and full RAL color customization for PPGI/PPGL corrugated roof sheets. Different coating types support different color retention service life.

Color Name	RAL Reference	Recommended Coating	Main Applications
White	RAL 9016	PE / SMP / HDP / PVDF	Residential roofs, commercial buildings, workshops
Ivory	RAL 1013	PE / SMP / HDP / PVDF	Villas, scenic buildings, high-end residential projects
Grey	RAL 9002	PE / SMP / HDP / PVDF	Industrial buildings, warehouses, office buildings
Beige	RAL 1015	PE / SMP / HDP / PVDF	Rural residential buildings, agricultural buildings
Yellow	RAL 1023	PE / SMP / HDP / PVDF	Warehouses, temporary buildings, industrial facilities
Brick Red	RAL 3013	PE / SMP / HDP / PVDF	Residential roofs, villas, scenic areas
Bright Red	RAL 3020	PE / SMP / HDP / PVDF	Commercial buildings, workshops, decorative roofs
Blue	RAL 5010	PE / SMP / HDP / PVDF	Factory roofs, warehouses, industrial buildings
Dark Blue	RAL 5017	HDP / PVDF	Coastal buildings, industrial roofs, high UV areas
Green	RAL 6005	PE / SMP / HDP / PVDF	Agricultural buildings, greenhouses, scenic areas
Chocolate	RAL 8017	HDP / PVDF	Villas, residential roofs, traditional-style buildings
Black	RAL 9005	HDP / PVDF	Modern buildings, industrial roofs, high-end projects

Product Comparison Table

Item	PE Coated PPGI	HDP PPGI	SMP PPGI	PVDF PPGL
Paint Material	Polyester	High Durable Polyester	Silicon Modified Polyester	PVDF Fluorocarbon
Anti-UV	Normal	Good	Very Good	Excellent
Anti-Fading	5-8 years	10-15 years	12-20 years	20+ years
Recommended Scene	Inland warehouse, simple workshop	Outdoor general building	High temperature roof	Coastal & high-end facade
Cost Level	Low	Medium	Medium-High	High

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

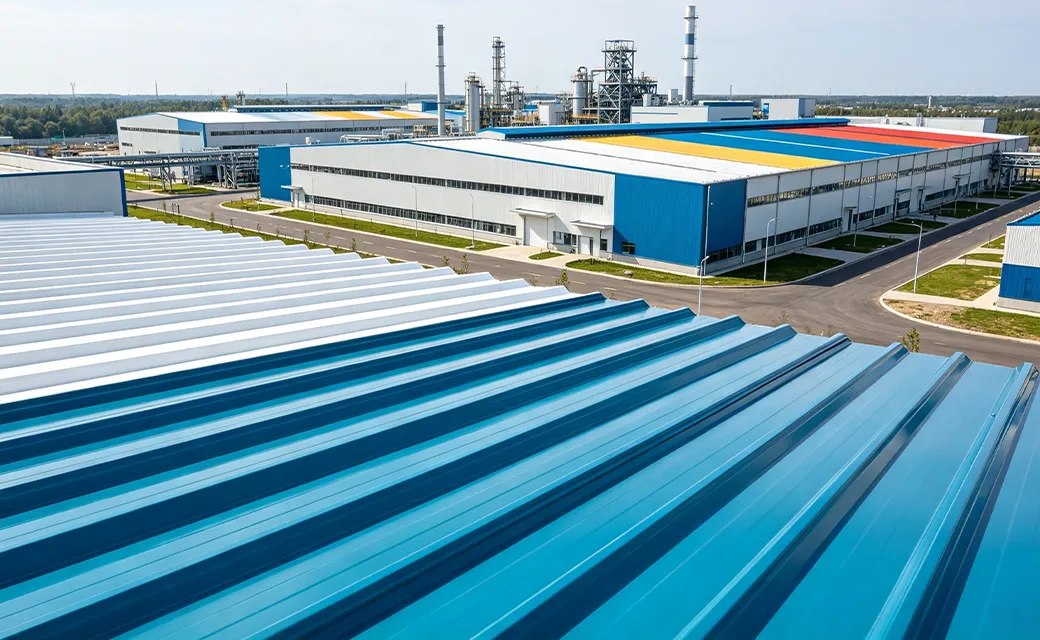

Modern Industrial Factories ppgi corrugated steel

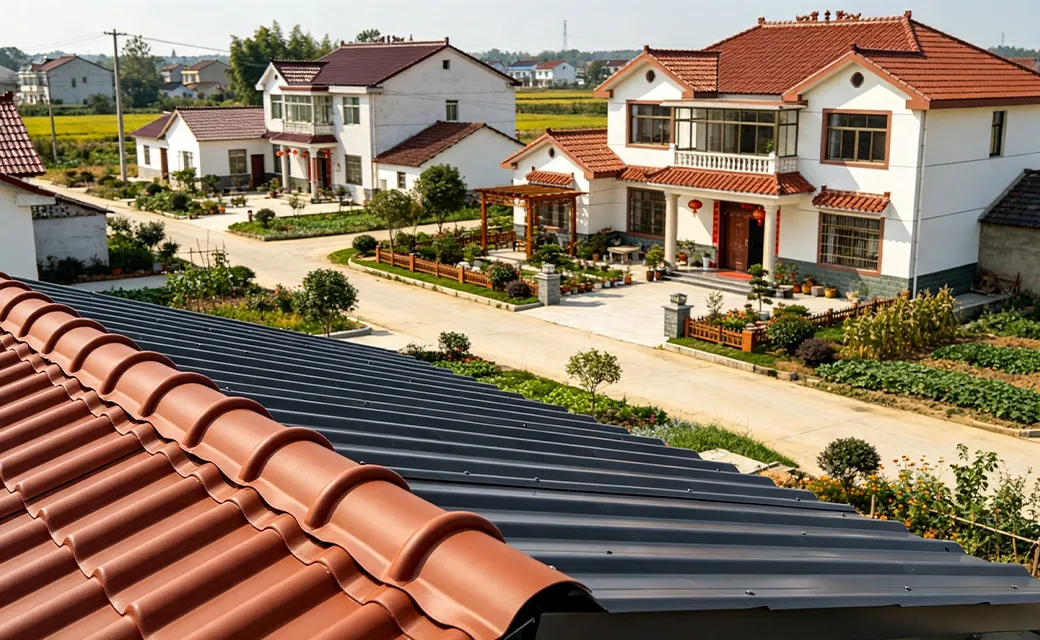

New Rural Construction PPGI Corrugated Steel

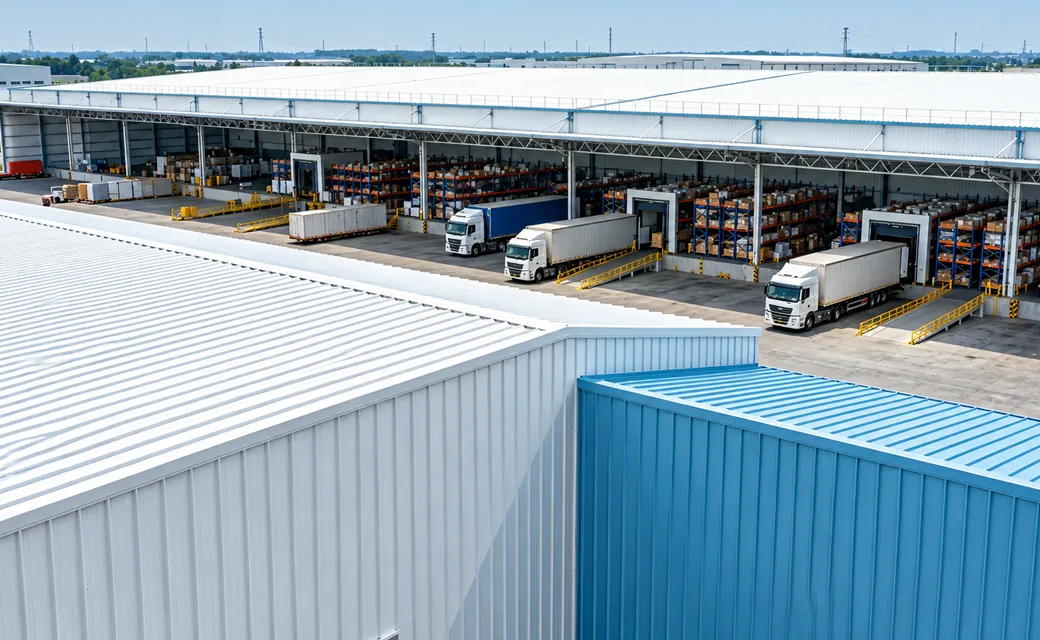

Warehousing and Logistics Centers PPGI Corrugated Steel

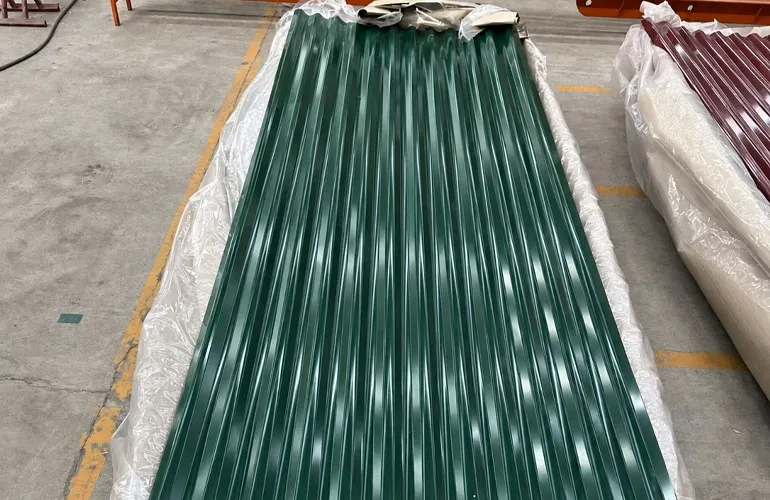

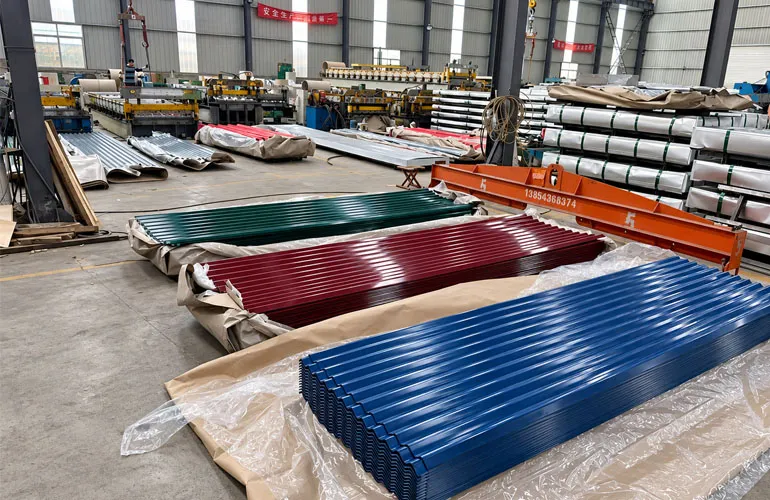

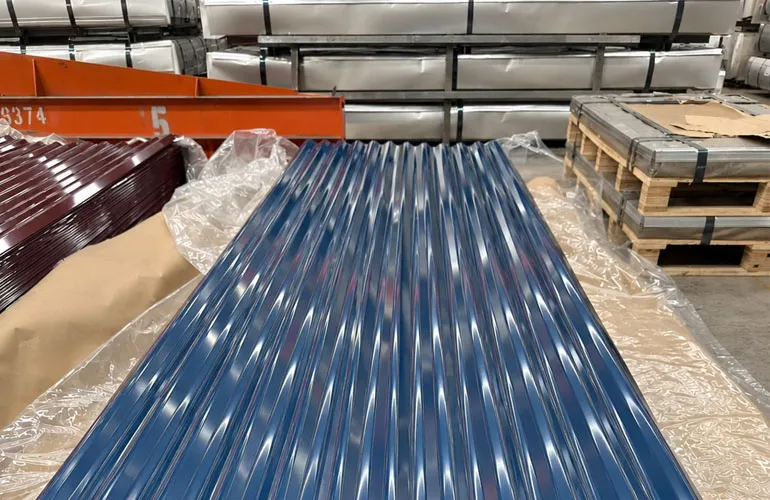

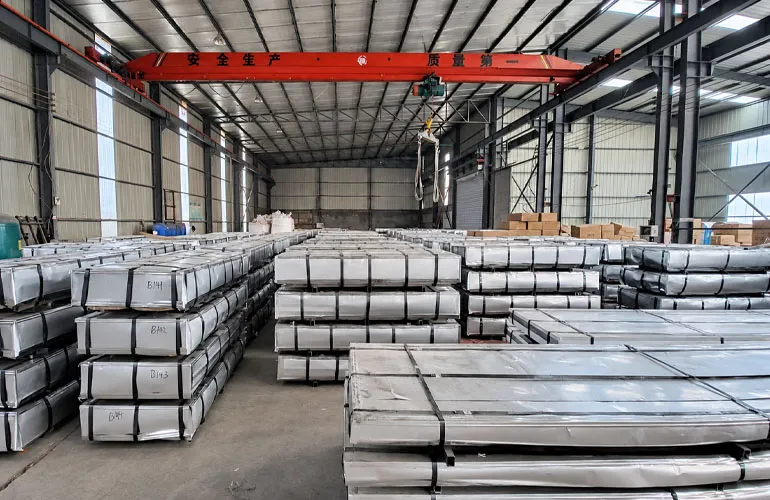

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is the difference between PE, HDP, SMP and PVDF coating?

PE is standard economical coating. HDP improves durability. SMP has good heat resistance. PVDF fluorocarbon provides best anti-UV and anti-corrosion performance with longest service life.

What is PPGI and PPGL prepainted steel sheet?

PPGI is prepainted galvanized steel with GI substrate. PPGL is prepainted aluzinc steel sheet with GL substrate, better anti-corrosion for coastal salt environment.

Can these prepainted sheets be bent and roll formed?

Yes. All four coating systems have good bending adhesion, suitable for roll forming into roof panels and wall sheets, no paint peeling under normal bending.

What coating thickness can you supply?

Standard top coating is 20~25μm, back protective coating 5~10μm, custom coating thickness negotiable for bulk orders.

Can I choose RAL color for PE, HDP, SMP and PVDF prepainted steel?

Yes. Full RAL color codes available. Custom color matching service can be offered for large quantity orders.

Which paint system should I pick for coastal construction project?

PVDF PPGL is the best option for coastal salty atmosphere. If budget limited, SMP PPGL is also an alternative choice.
