Q235+AZ Galvalume Steel Coil | GB Structural Aluzinc Steel Coil

Galvalume Steel Coil - GL Galvalume Steel Coil - GL

Q235+AZ Galvalume Steel Coil | GB Structural Aluzinc Steel Coil

  1. Good structural strength, yield strength ≥235MPa for load-bearing components
  2. Aluzinc 55% Al-Zn coating for long outdoor anti-corrosion service life
  3. Multi-standard match: GB Q235+AZ, EN Q235+AZ, ASTM SS Grade33
  4. Stable mechanical property for structural roll forming & load support
  5. Custom slitting, cut sheet and multiple surface treatment options
Contact Us

Product Overview

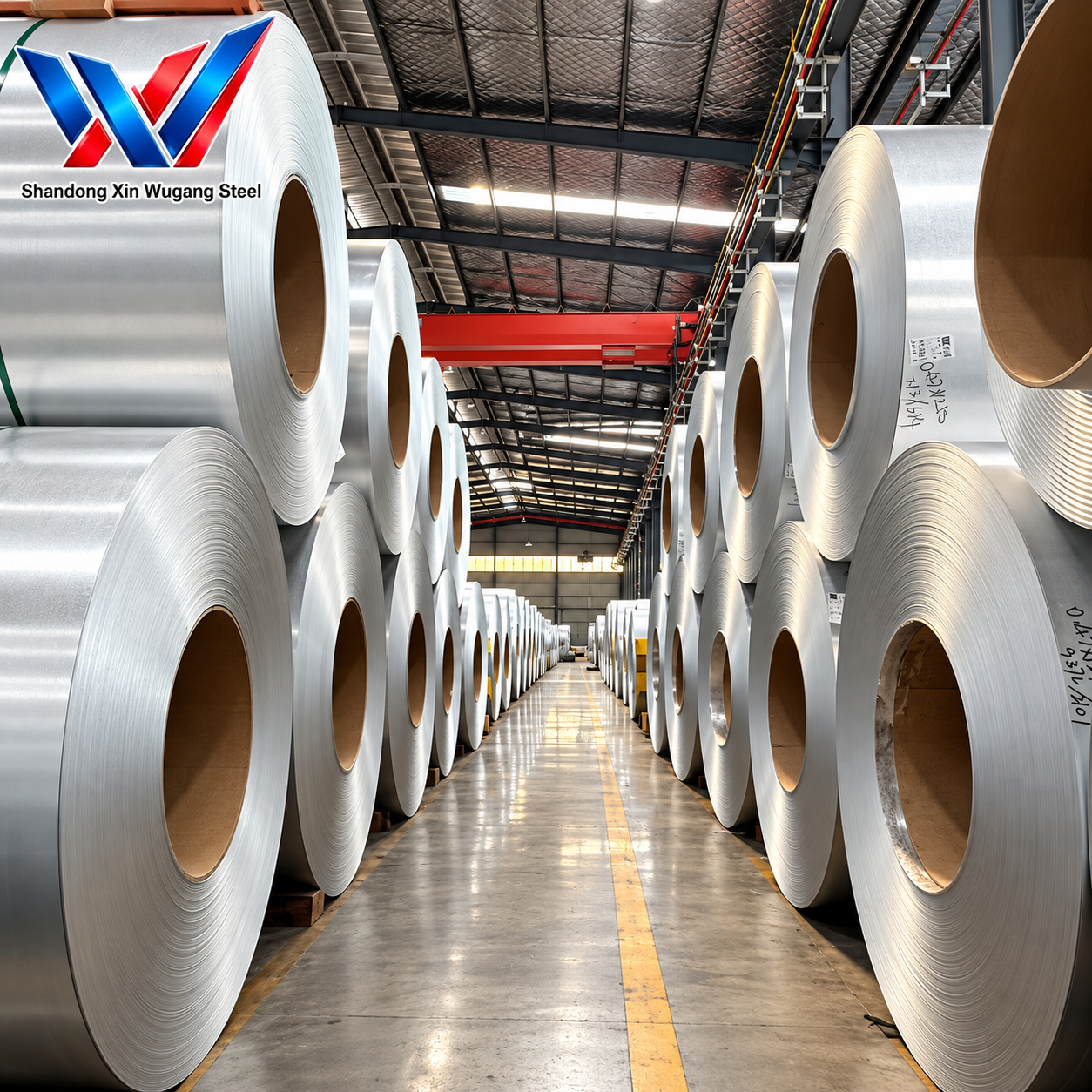

Q235+AZ Galvalume Steel Coil is structural grade aluzinc GL coil under GB/T14978 & EN10346 standard. It uses low carbon structural steel substrate hot-dipped with 55% Al-Zn-Si alloy coating. Q235+AZ grade features minimum yield strength ≥235MPa, designed for structural load bearing applications.

Coating weight AZ50~AZ200g/m², available surface: passivation, chromium-free passivation, anti-rust oil and anti-fingerprint AF treatment. Thickness range 0.18–2.5mm, mainstream thickness 0.2–1.5mm, standard widths:914,1000,1219,1250mm. We can slit coil to narrow strips or cut to flat sheet.

Q235+AZ aluzinc coil balances structural strength and bending formability, widely used for photovoltaic mounting brackets, building structural support, load-bearing wall panels, warehouse frame profiles, outdoor structural components. The aluzinc coating provides outstanding corrosion resistance for long term outdoor service. Mill Test Certificate is available for each batch.

Galvalume Steel Coil - GL

Chemical & Mechanical Property Snapshot

Grade Standard C Max (%) Mn Max (%) P Max (%) S Max (%) Yield Strength Rp0.2 (MPa) Tensile Strength Rm (MPa) Elongation A80 (%)
Q235+AZ GB/T14978 & EN10346 0.17 1.40 0.045 0.045 ≥235 370–500 ≥26
Equivalent SS Grade33 ASTM A792 0.17 1.40 0.045 0.045 ≥235 370–500 ≥26

Detailed Technical Specifications

Specification Item Available Specification
Product Name Q235+AZ Galvalume Steel Coil
Alternative Name Q235+AZ Structural Aluzinc GL Coil
Manufacturing Process Hot-dip 55% Al-Zn-Si coating on Q235 structural carbon steel substrate
Coating Composition 55% Aluminum / 43.4% Zinc / 1.6% Silicon
Applicable Standards GB/T14978, EN10346, ASTM A792/A792M
Grade Q235+AZ
Equivalent Grades ASTM SS Grade33
Thickness Range 0.18–2.5 mm
Mainstream Thickness 0.2–1.5 mm
Standard Widths 914 / 1000 / 1219 / 1250 mm
Coating Weight AZ50, AZ70, AZ100, AZ150, AZ200 g/m²
Surface Treatment Passivation / Chromium-Free Passivation / Oil-Based Anti-Rust / Anti-Fingerprint AF
Standard Coil Inner Diameter 508 mm
Processing Options Slitting into narrow strips, Cut-to-length flat sheets
Quality Documentation Mill Test Certificate (MTC), third-party inspection available
Packing Waterproof paper + galvanized steel strap + seaworthy export wooden pallet
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit

Product Comparison Table

Specification / Feature Q235+AZ Galvalume Steel Coil Equivalent Grade Cross Reference Buyer Selection Consideration
Common Name Q235+AZ Structural Aluzinc GL Coil GB:Q235+AZ; EN:Q235+AZ; ASTM:SS Grade33 Structural grade for load-bearing support components
Base Material Q235 structural carbon steel substrate Structural low carbon steel Has specified minimum yield strength for load
Coating System 55% Al +43.4% Zn +1.6% Si Aluzinc alloy coating Excellent anti-corrosion for outdoor structural parts
Standards GB/T14978, EN10346 ASTM A792/A792M For PV bracket & building structure global project
Thickness 0.18–2.5 mm 0.2–1.5mm mainstream Select thickness according to structural load
Width 914 /1000 /1219 /1250 mm Slit narrow strip available Custom width for roll forming structural profile
Coating Weight AZ50~AZ200 g/m² AZ100+ recommended for coastal PV project Higher AZ weight for salt fog environment
Surface Treatment Passivation / Cr-Free Passivation / Oil / Anti-Fingerprint AF AF surface prevent fingerprint marks Choose AF if manual handling frequently
Coil ID 508 mm standard Custom ID available Fits standard uncoiler
Processing Slitting, Cut-To-Length Custom dimension service Can produce narrow structural aluzinc strip
Typical Applications PV mounting brackets, building structural support, load bearing wall panel, warehouse frame profiles, outdoor structural components Outdoor load-bearing structural profiles Select Q235+AZ for structural support requirement

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

0_0000_Outdoor Electrical Equipment Enclosure (1)

Photovoltaic Brackets GL Steel

Factory Roofing and Wall Cladding in Coastal High-Salt-Spray Areas

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Equivalent ASTM SS Grade33, structural grade with yield ≥235MPa.

Mainly used for photovoltaic support brackets, building structural frames, load-bearing metal profiles, outdoor structural components.

Yes, Q235+AZ has good bending performance, widely used for roll forming PV bracket profiles.

We recommend AZ100 or higher coating weight for coastal high salt fog environment.

MOQ 5 ton, delivery time 7–15 working days after deposit received.
