RAL Custom Color PPGI PPGL Prepainted Steel Sheet | Custom RAL Code Coated Steel Panel

Full RAL color library support, standard RAL color ready in stock, custom color matching for bulk orders
Dual substrate selection PPGI galvanized GI and PPGL aluzinc GL to match different corrosion environments
Optional PE/HDP/SMP/PVDF paint systems, color stability guaranteed under long outdoor exposure
Customizable thickness, width and cut length, can be roll formed into roof tiles and wall cladding
Strict color difference inspection before shipment, color sample confirmation before mass production

Product Overview

RAL Custom Color PPGI PPGL prepainted steel sheet is color coated metal material customized according to RAL color codes, widely used for architectural roofing, exterior wall cladding, decorative facade and metal panel projects. We cover the complete RAL color system including common RAL7035, RAL9002, RAL9006, RAL6005, RAL3009 and more.

The substrate adopts DX51D hot dip galvanized steel for PPGI and DX51D aluzinc steel for PPGL. Buyers can select different coating systems from economical PE polyester, HDP high durable polyester, SMP silicon modified polyester to premium PVDF fluorocarbon coating based on project lifespan requirement. All color production will make color swatch for customer confirmation before mass production to control Delta E color difference.

This RAL color prepainted steel sheet features good coating flexibility. It can be bent and roll formed into corrugated roof panels, trapezoidal sheets without paint peeling. We provide custom thickness, width and cut-to-length service. Suitable for factory building, warehouse, residential house, agricultural barn, shopping mall facade and industrial partition.

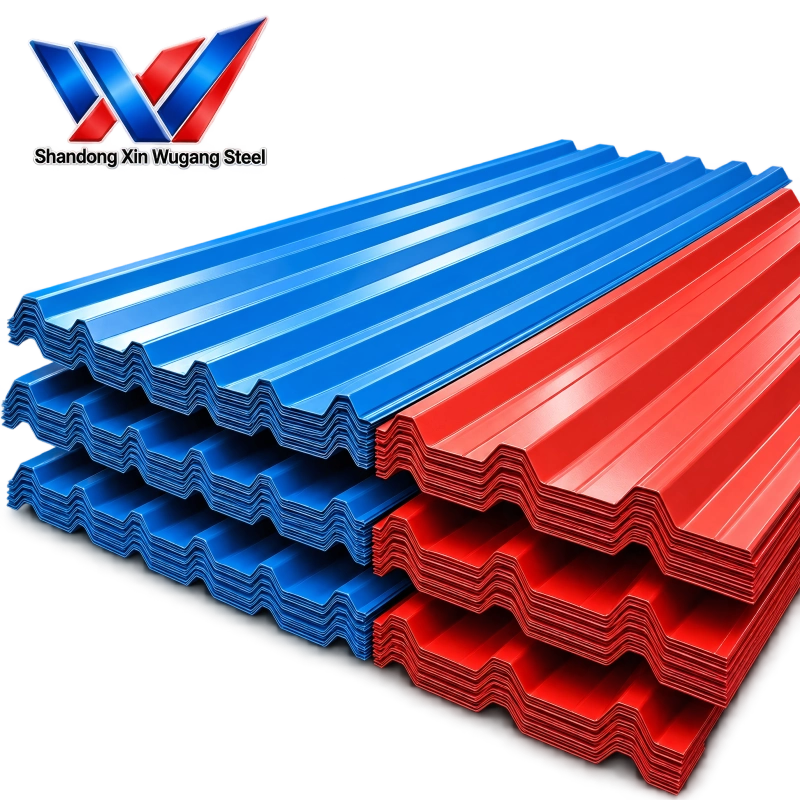

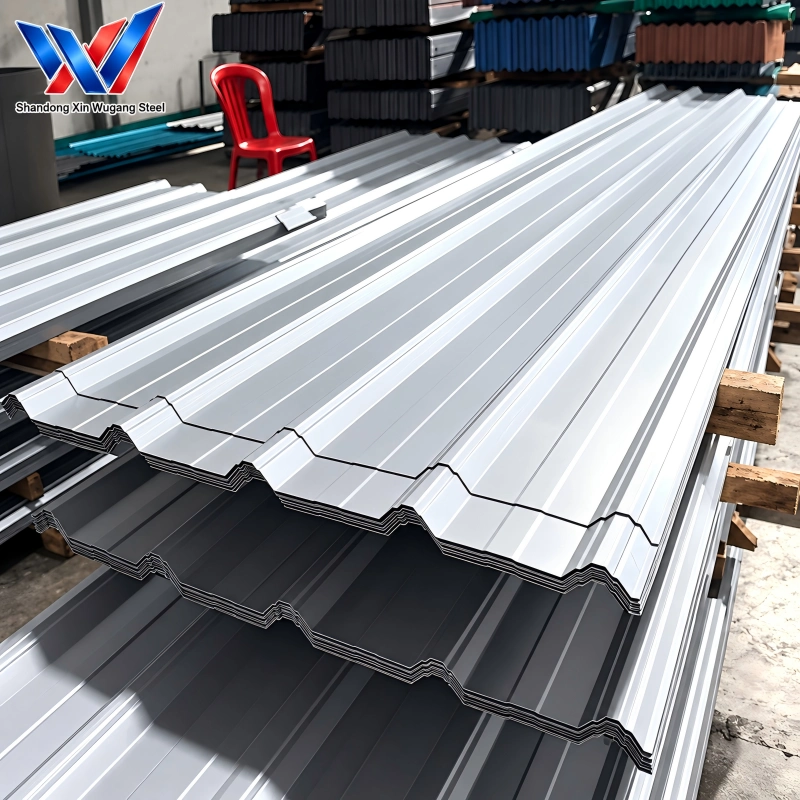

PPGI/PPGL Color Coated Corrugated Roof Sheet

Chemical & Mechanical Property Snapshot

Item	Specification
Substrate Grade	DX51D
Base Material	GI Galvanized for PPGI, GL Aluzinc for PPGL
Yield Strength	250 MPa min
Tensile Strength	270–500 MPa
Zinc / Aluzinc Coating	Z80-Z275(GI), AZ50-AZ150(GL) optional
Paint System	PE / HDP / SMP / PVDF
Elongation	≥22%
Substrate Chemical Composition	C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%

Detailed Technical Specifications

Parameter	Details
Color Standard	Full RAL color codes, custom color matching
Product Type	PPGI (GI substrate), PPGL (GL substrate)
Substrate Grade	DX51D
Thickness	0.35mm ~1.2mm
Coating Thickness	Top coat:20~25μm; Back coat:5~10μm
Width	900mm,1000mm,1200mm,1250mm or customized
Length	Custom cut length
Application	Roof panel, wall cladding, building facade, decorative metal panel
Packaging	Waterproof wrapping + steel strapping for ocean shipment

Supporting Documents	Factory Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Available Roof Corrugated Profiles

We supply full series PPGI / PPGL corrugated roof profiles. Each waveform has different wave height, effective width and mechanical performance. Suitable for roofing, wall cladding, drainage and different wind load requirements. All profiles can be customized with various color coating.

Profile Model	Profile Type	Wave Height	Effective Cover Width	Raw Coil Width	Main Features	Typical Applications
YX8-31.5-882	Low Rib Trapezoidal	8 mm	882 mm	1000 mm	Lightweight, economical, easy forming	Inner lining, temporary enclosure, small wall panels
YX15-225-900	Low Trapezoidal	15 mm	900 mm	1000 mm	Low wave design, good cost performance	Agricultural sheds, small workshops, temporary buildings
YX18-76-988	Small Arc Corrugated	18 mm	988 mm	1200 mm	Smooth arc, wide coverage	Farm buildings, poultry houses, simple roofing
YX25-210-840	Medium Trapezoidal	25 mm	840 mm	1000 mm	Standard load-bearing profile	Factory roofs, warehouse walls, industrial buildings
YX28-205-820	Medium-High Trapezoidal	28 mm	820 mm	1000 mm	Higher rigidity, good snow load resistance	Warehouses, workshops, medium-span buildings
YX35-125-750	High Rib Trapezoidal	35 mm	750 mm	1000 mm	Excellent drainage, strong wind resistance	Industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	Wide-Pitch High Rib	35 mm	860 mm	1000 mm	Large support span	Factory roofs, logistics warehouses
YX51-380-760	Deep High Rib	51 mm	760 mm	1000 mm	Heavy load capacity, high wind resistance	Large industrial buildings, heavy snow regions
YX66-394-788	Standing Seam	66 mm	788 mm	1000 mm	360° lock seam, hidden fastening, superior waterproof performance	Public buildings, industrial roofs, coastal high-wind projects
840 Arc Corrugated	Circular Arc Wave	20 mm	840 mm	1000 mm	Classic arc design, smooth drainage	Farmhouses, residential roofs, simple buildings
900 Arc Corrugated	Circular Arc Wave	18 mm	900 mm	1000 mm	Widely used, cost-effective	Residential roofs, warehouse wall panels
1050 Wide Arc	Wide Arc Corrugated	18 mm	1050 mm	1200 mm	Wide coverage, fewer overlaps	Large-area roofs, temporary buildings
1080 Wide Arc	Wide Arc Corrugated	20 mm	1080 mm	1250 mm	Large effective width, fast installation	Commercial roofs, logistics centers
Antique Glazed Tile	Decorative Glazed Tile	30 mm	800 mm	1000 mm	Traditional tile appearance, decorative effect	Villas, scenic areas, tourism buildings, residential roofs

Color Options Gallery

We provide standard colors and full RAL color customization for PPGI/PPGL corrugated roof sheets. Different coating types support different color retention service life.

Color Name	RAL Reference	Recommended Coating	Main Applications
White	RAL 9016	PE / SMP / HDP / PVDF	Residential roofs, commercial buildings, workshops
Ivory	RAL 1013	PE / SMP / HDP / PVDF	Villas, scenic buildings, high-end residential projects
Grey	RAL 9002	PE / SMP / HDP / PVDF	Industrial buildings, warehouses, office buildings
Beige	RAL 1015	PE / SMP / HDP / PVDF	Rural residential buildings, agricultural buildings
Yellow	RAL 1023	PE / SMP / HDP / PVDF	Warehouses, temporary buildings, industrial facilities
Brick Red	RAL 3013	PE / SMP / HDP / PVDF	Residential roofs, villas, scenic areas
Bright Red	RAL 3020	PE / SMP / HDP / PVDF	Commercial buildings, workshops, decorative roofs
Blue	RAL 5010	PE / SMP / HDP / PVDF	Factory roofs, warehouses, industrial buildings
Dark Blue	RAL 5017	HDP / PVDF	Coastal buildings, industrial roofs, high UV areas
Green	RAL 6005	PE / SMP / HDP / PVDF	Agricultural buildings, greenhouses, scenic areas
Chocolate	RAL 8017	HDP / PVDF	Villas, residential roofs, traditional-style buildings
Black	RAL 9005	HDP / PVDF	Modern buildings, industrial roofs, high-end projects

Product Comparison Table

Item	Standard RAL Color PPGI	Standard RAL Color PPGL	Bespoke Custom Color
Substrate	Hot dip galvanized GI	Aluzinc GL	GI / GL optional
Anti-corrosion	Good for inland area	Excellent for coastal area	Depends on substrate
Coating Options	PE/HDP/SMP/PVDF	PE/HDP/SMP/PVDF	PE/HDP/SMP/PVDF
Lead Time	Short, stock available	Medium	Longer, color sample confirmation required
Cost	Low	Medium	Medium-High

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Modern Industrial Factories ppgi corrugated steel

New Rural Construction PPGI Corrugated Steel

Warehousing and Logistics Centers PPGI Corrugated Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What RAL colors do you support for PPGI and PPGL sheet?

We support the full RAL color library, popular codes like RAL7035, RAL9002, RAL9006, RAL6005, RAL3009 are available.

Do you need to confirm color sample before mass production?

Yes. We send physical color swatch for your confirmation before mass production to avoid color difference.

Can custom RAL color PPGL sheet be used in coastal environment?

Yes, choose PPGL aluzinc substrate plus PVDF or SMP coating for coastal salty air application.

What is the MOQ for custom RAL color prepainted steel sheet?

Standard RAL colors have low MOQ. Non-standard custom colors require higher MOQ, subject to negotiation.

Is the color guaranteed not to fade quickly?

Color retention depends on paint system. PVDF has best anti-fading performance, PE is economical choice for inland projects.

Can this RAL color coated steel be roll formed into roof panels?

Yes, coating has good flexibility, suitable for roll forming to YX trapezoidal roof sheets and wall panels.
