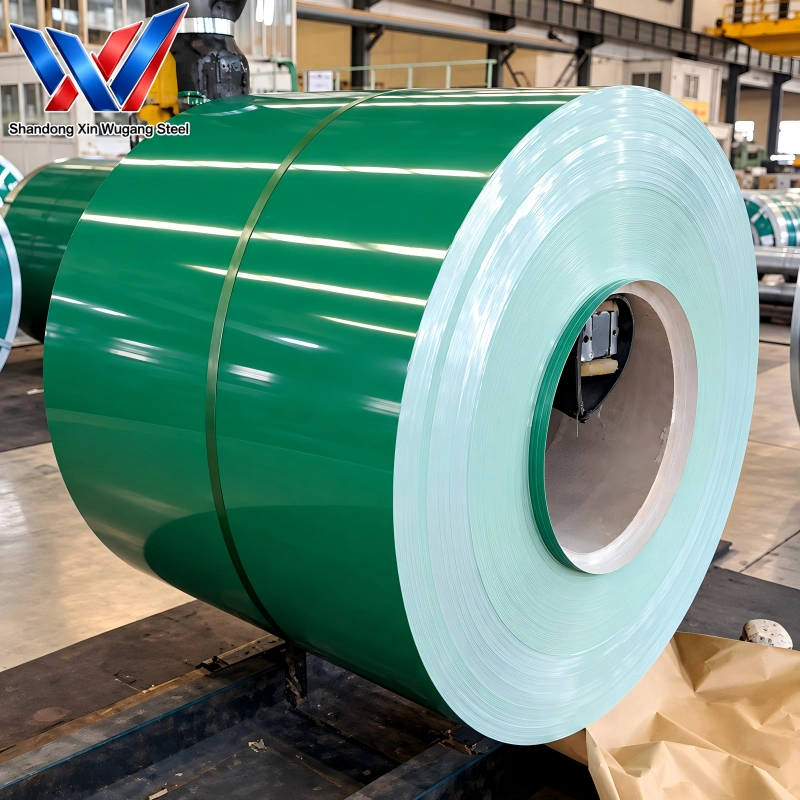

RAL6005 S250GD+Z PPGI Prepainted Galvanized Steel Coil | Moss Green Color Coated Steel Coil

Prepainted Steel Coil - PPGI/PPGL Prepainted Steel Coil - PPGI/PPGL Prepainted Steel Coil - PPGI/PPGL

RAL6005 S250GD+Z PPGI Prepainted Galvanized Steel Coil | Moss Green Color Coated Steel Coil

  1. RAL6005 moss green color, stable ΔE color control, batch consistent appearance
  2. S250GD+Z high-strength galvanized substrate, good load-bearing property
  3. Multi coating options PE/SMP/HDP/PVDF, suitable for outdoor long time exposure
  4. Excellent rigidity, ideal for structural wall and roof panels of farm buildings
  5. Complete test documents, third-party inspection available, export seaworthy packing
Contact Us

Product Overview

RAL6005 S250GD+Z PPGI Prepainted Galvanized Steel Coil is structural grade color coated steel coil produced according to EN10346 standard. The base material S250GD+Z hot-dip galvanized steel features higher yield strength than DX51D series, specially designed for load-bearing structural building components. The surface is coated with organic paint in classic RAL6005 moss green color, widely used for agricultural farm buildings, greenhouses and landscape-matched construction projects.

The galvanized substrate provides reliable zinc anti-corrosion protection, while the top organic paint layer resists UV, rain and weather fading. Zinc coating mass can be customized Z60 to Z275 g/m². Customers can select PE, SMP, HDP or PVDF coating based on local climate. HDP and PVDF coating effectively slow color fading under long-time outdoor sunlight.

This moss green S250GD+Z PPGI is commonly fabricated into structural corrugated roof sheets, exterior wall panels, farm barn siding, greenhouse accessory panels and prefab structural profiles. Available thickness from 0.18mm to 1.2mm, width range 600–1250mm, inner coil diameter 508mm /610mm, coil weight 2–8 tons.

Prepainted Steel Coil - PPGI/PPGL

Chemical & Mechanical Property Snapshot

Item Specification
Grade S250GD+Z
Executive Standard EN10346
Substrate Material Hot-dip galvanized steel
Color RAL6005 Moss Green
Yield Strength ≥250 MPa
Tensile Strength 330 – 470 MPa
Minimum Elongation (L0=80mm) ≥18%
Zinc Coating Mass Z60 / Z100 / Z140 / Z200 / Z275 g/m²
Top Paint Coating Thickness 15 ~35 μm
Back Paint Coating Thickness 5 ~12 μm
Coating System PE / SMP / HDP / PVDF
T-bend Test ≤3T
Salt Spray Resistance PE: ≥500h; HDP: ≥1000h; PVDF: ≥2000h

Detailed Technical Specifications

Parameter Details
Full Product Name RAL6005 S250GD+Z Prepainted Galvanized PPGI Steel Coil
Base Grade S250GD+Z
Base Substrate Hot Dip Galvanized Steel
Production Standard EN10346
RAL Color Code RAL6005 Moss Green
Total Thickness 0.18 mm – 1.2 mm
Available Width 600 mm, 750 mm, 800 mm, 900 mm, 1000 mm, 1200 mm, 1250 mm
Coil Inner Diameter 508 mm (20 inch) / 610 mm (24 inch)
Zinc Coating Z60, Z100, Z140, Z200, Z275 g/m²
Top Coating Paint 15μm ~35μm
Backside Paint 5μm ~12μm protective epoxy paint
Coating Types PE Polyester, SMP Silicon Modified Polyester, HDP High Durability Polyester, PVDF
Surface Finish Smooth / Matte optional
Single Coil Weight 2 Ton ~ 8 Ton
Packaging Method Waterproof paper + PVC plastic film + metal edge protector + steel strapping, seaworthy export package
Main Applications Farm building roof & wall, barn panel, greenhouse cladding, prefab structural panel, landscape matched construction
Inspection Mill self-inspection; third-party inspection (SGS/BV etc.) available
Documents Mill Test Certificate (MTC), Commercial Invoice, Packing List, Bill of Lading
MOQ 5 Metric Ton for standard color & regular specs

PPGI / PPGL Color Chart & Finishes

We supply PPGI and PPGL prepainted steel coil with full RAL solid color system and multiple customized pattern finishes. Gloss, matte, metallic, pearlescent, wood grain, marble grain, brick pattern, tile pattern and stucco texture options are available. Custom color & custom pattern are acceptable according to customer samples. Please note that slight color difference exists between screen display and real steel coil, physical color card can be provided for final confirmation before mass production.

Color Category RAL No. Color Name Surface Finish Application
White Series RAL9010 Pure White Gloss / Matte Roofing, wall cladding, containers
White Series RAL9002 Off White Gloss / Matte Building facades, warehouse panels
Grey Series RAL7035 Light Grey Gloss / Matte Factory walls, equipment shells
Grey Series RAL7024 Graphite Grey Gloss / Matte Roof tiles, exterior decoration
Grey Series RAL9006 Silver Grey (Metallic) Metallic Gloss Roof decorative panels
Red Series RAL3009 Oxide Red Gloss Corrugated roofs, agricultural buildings
Red Series RAL3020 Traffic Red Gloss / Matte Doors, advertising boards
Blue Series RAL5005 Signal Blue Gloss Factory roofing, enclosures
Green Series RAL6005 Moss Green Gloss / Matte Warehouse roofs, farm buildings
Brown Series RAL8017 Chocolate Brown Gloss / Matte Villa roofs, wall panels
Pattern Series Custom Wood Grain Embossed Printed Texture Interior & exterior walls, villa roofing
Pattern Series Custom Marble Grain Printed Texture Wall cladding, decorative panels
Pattern Series Custom Camouflage Pattern Printed Coating Special engineering projects, warehouse enclosures
Pattern Series Custom Brick Pattern Embossed Printed Texture Building facade decoration
Pattern Series Custom Tile Pattern Printed Texture Imitation tile roofing sheets
Pattern Series Custom Stucco Texture Embossed Matte Exterior wall panels

Product Comparison Table

Grade Standard Substrate Type RAL Color Zinc Coating Range Formability Typical Application
S250GD+Z EN10346 PPGI Galvanized RAL6005 Moss Green Z60~Z275g/m² Medium forming Farm structural roof & wall panel
S350GD+Z EN10346 PPGI Galvanized RAL6005 Moss Green Z60~Z275g/m² Low forming Heavy load structural profiles
DX51D+Z EN10346 PPGI Galvanized RAL6005 Moss Green Z60~Z275g/m² General forming General non-load bearing cladding
S250GD+AZ EN10346 PPGL Galvalume RAL6005 Moss Green AZ50~AZ150g/m² Medium forming Farm buildings in coastal humid area
DX51D+AZ EN10346 PPGL Galvalume RAL6005 Moss Green AZ50~AZ150g/m² General forming General coastal wall panel

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Industrial Factory Panels PPGI Steel

Container Sheets PPGI Steel

Rolling Shutters PPGI Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

It is high strength moss green color coated galvanized steel coil. S250GD+Z is structural grade substrate, RAL6005 is moss green, widely used for agricultural buildings.

S250GD+Z has higher yield strength, better rigidity, suitable for structural panels. DX51D+Z is for common forming without high load requirement.

Select HDP or PVDF coating, it can effectively reduce fading under strong sunlight, perfect for farm buildings.

Yes, we accept custom RAL colors and customized patterned coating upon request.

Standard MOQ is 5 ton for regular specifications, we also support small trial orders after confirmation.
