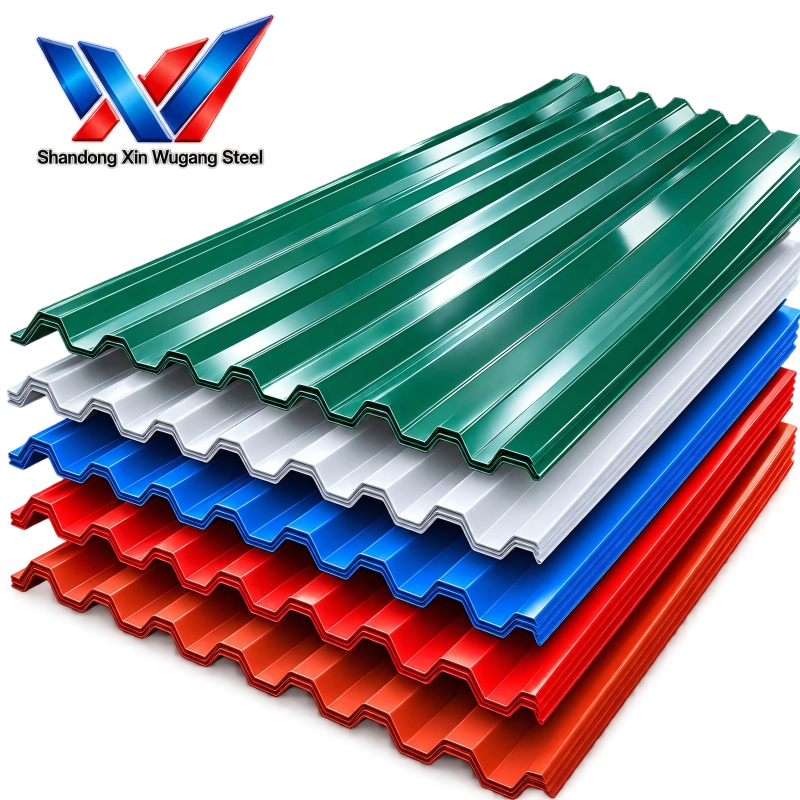

YX25-210-840 PPGL Color Coated Corrugated Roof Sheet | DX51D Prepainted Aluzinc Roof Tile

YX25-210-840 medium rib profile, balanced rigidity and easy handling during installation
DX51D aluzinc(GL) base substrate, superior salt & corrosion resistance for coastal environment
Multiple paint systems PE / HDP / SMP / PVDF, resist fading and chalking under UV exposure
Full RAL color selection, custom cutting length to minimize construction waste
Lightweight corrugated tile, simple overlap connection, shorten roof construction cycle

Product Overview

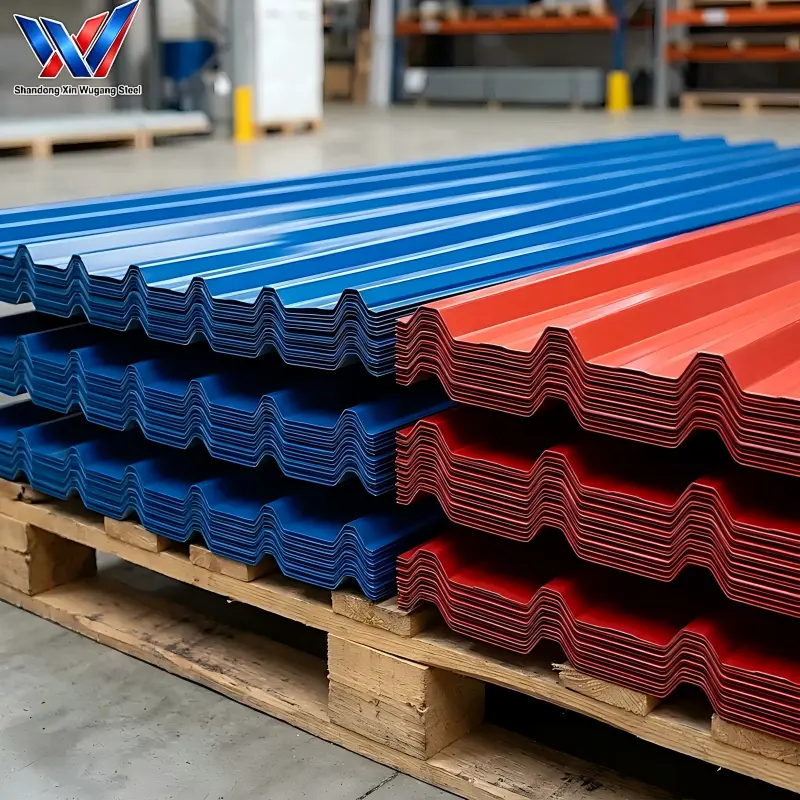

YX25-210-840 PPGL color coated corrugated roof sheet is a popular medium rib metal roof tile fabricated with DX51D prepainted aluzinc steel substrate. The profile stands for 25mm rib height, 210mm pitch and 840mm effective covering width after roll forming. The aluzinc substrate consists of aluminum-zinc alloy coating, offering much better anti-corrosion performance than ordinary galvanized PPGI sheet, which makes it the preferred solution for coastal, humid and lightly industrial corrosive regions.

This PPGL roof tile adopts organic top coating plus backside protective primer. Customers can select coating systems: standard PE polyester, HDP high durable polyester, SMP silicon modified polyester and high-end PVDF fluorocarbon coating for different service life requirements. We support all standard RAL colors and customized color matching. The sheet can be cut to any required length according to project drawings.

It is widely applied for residential roof, factory workshop, logistics warehouse, poultry farm, seaside resort buildings and wall cladding. The corrugated overlapping design ensures good waterproof performance with proper installation. Light weight reduces load on building structure.

PPGI/PPGL Color Coated Corrugated Roof Sheet

Chemical & Mechanical Property Snapshot

Item	Specification
Substrate Grade	DX51D
Base Material	Hot-dip aluzinc steel GL
Yield Strength	250 MPa min
Tensile Strength	270–500 MPa
Aluzinc Coating Mass	AZ50-AZ150 optional
Paint Coating	PE / HDP / SMP / PVDF
Elongation	≥22%
Substrate Chemical Composition	C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%

Detailed Technical Specifications

Parameter	Details
Profile Model	YX25-210-840
Effective Cover Width	840 mm
Rib Height	25 mm
Material Thickness	0.4mm ~ 1.0mm
Substrate	DX51D Aluzinc Steel (GL)
Coating Type	PPGL Prepainted Coating
Available Color	Full RAL colors, custom color available
Length	Custom cut as customer requirement
Surface Treatment	Top coating + back protective paint
Application	Residential roof, warehouse, workshop, coastal building, wall cladding
Packaging	Waterproof wrapping + steel strapping for ocean shipment

Supporting Documents	Factory Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Available Roof Corrugated Profiles

We supply full series PPGI / PPGL corrugated roof profiles. Each waveform has different wave height, effective width and mechanical performance. Suitable for roofing, wall cladding, drainage and different wind load requirements. All profiles can be customized with various color coating.

Profile Model	Profile Type	Wave Height	Effective Cover Width	Raw Coil Width	Main Features	Typical Applications
YX8-31.5-882	Low Rib Trapezoidal	8 mm	882 mm	1000 mm	Lightweight, economical, easy forming	Inner lining, temporary enclosure, small wall panels
YX15-225-900	Low Trapezoidal	15 mm	900 mm	1000 mm	Low wave design, good cost performance	Agricultural sheds, small workshops, temporary buildings
YX18-76-988	Small Arc Corrugated	18 mm	988 mm	1200 mm	Smooth arc, wide coverage	Farm buildings, poultry houses, simple roofing
YX25-210-840	Medium Trapezoidal	25 mm	840 mm	1000 mm	Standard load-bearing profile	Factory roofs, warehouse walls, industrial buildings
YX28-205-820	Medium-High Trapezoidal	28 mm	820 mm	1000 mm	Higher rigidity, good snow load resistance	Warehouses, workshops, medium-span buildings
YX35-125-750	High Rib Trapezoidal	35 mm	750 mm	1000 mm	Excellent drainage, strong wind resistance	Industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	Wide-Pitch High Rib	35 mm	860 mm	1000 mm	Large support span	Factory roofs, logistics warehouses
YX51-380-760	Deep High Rib	51 mm	760 mm	1000 mm	Heavy load capacity, high wind resistance	Large industrial buildings, heavy snow regions
YX66-394-788	Standing Seam	66 mm	788 mm	1000 mm	360° lock seam, hidden fastening, superior waterproof performance	Public buildings, industrial roofs, coastal high-wind projects
840 Arc Corrugated	Circular Arc Wave	20 mm	840 mm	1000 mm	Classic arc design, smooth drainage	Farmhouses, residential roofs, simple buildings
900 Arc Corrugated	Circular Arc Wave	18 mm	900 mm	1000 mm	Widely used, cost-effective	Residential roofs, warehouse wall panels
1050 Wide Arc	Wide Arc Corrugated	18 mm	1050 mm	1200 mm	Wide coverage, fewer overlaps	Large-area roofs, temporary buildings
1080 Wide Arc	Wide Arc Corrugated	20 mm	1080 mm	1250 mm	Large effective width, fast installation	Commercial roofs, logistics centers

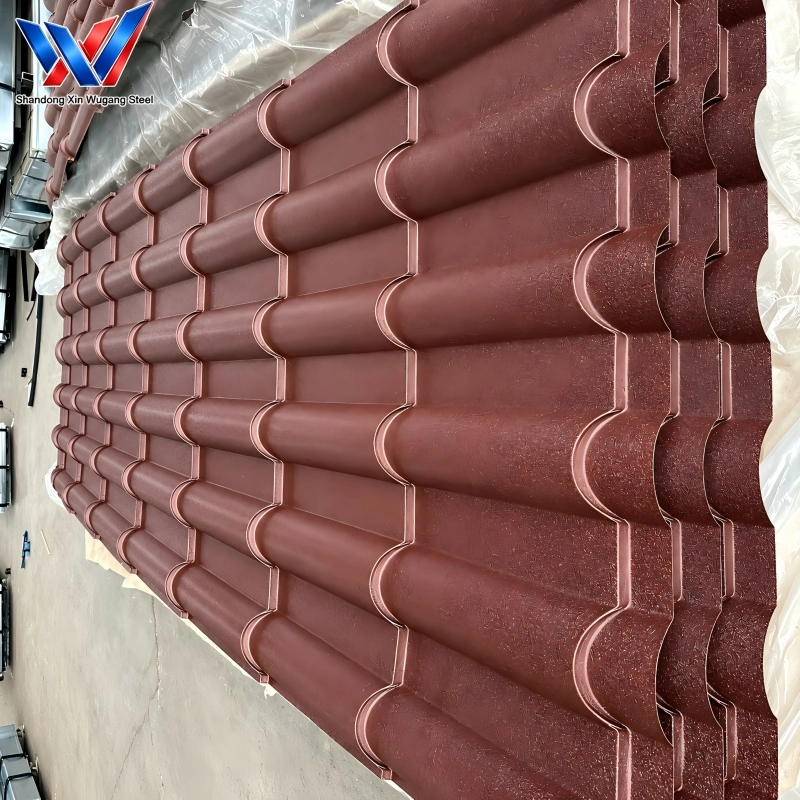

Antique Glazed Tile	Decorative Glazed Tile	30 mm	800 mm	1000 mm	Traditional tile appearance, decorative effect	Villas, scenic areas, tourism buildings, residential roofs

Color Options Gallery

We provide standard colors and full RAL color customization for PPGI/PPGL corrugated roof sheets. Different coating types support different color retention service life.

Color Name	RAL Reference	Recommended Coating	Main Applications
White	RAL 9016	PE / SMP / HDP / PVDF	Residential roofs, commercial buildings, workshops
Ivory	RAL 1013	PE / SMP / HDP / PVDF	Villas, scenic buildings, high-end residential projects
Grey	RAL 9002	PE / SMP / HDP / PVDF	Industrial buildings, warehouses, office buildings
Beige	RAL 1015	PE / SMP / HDP / PVDF	Rural residential buildings, agricultural buildings
Yellow	RAL 1023	PE / SMP / HDP / PVDF	Warehouses, temporary buildings, industrial facilities
Brick Red	RAL 3013	PE / SMP / HDP / PVDF	Residential roofs, villas, scenic areas
Bright Red	RAL 3020	PE / SMP / HDP / PVDF	Commercial buildings, workshops, decorative roofs
Blue	RAL 5010	PE / SMP / HDP / PVDF	Factory roofs, warehouses, industrial buildings
Dark Blue	RAL 5017	HDP / PVDF	Coastal buildings, industrial roofs, high UV areas
Green	RAL 6005	PE / SMP / HDP / PVDF	Agricultural buildings, greenhouses, scenic areas
Chocolate	RAL 8017	HDP / PVDF	Villas, residential roofs, traditional-style buildings
Black	RAL 9005	HDP / PVDF	Modern buildings, industrial roofs, high-end projects

Product Comparison Table

Item	YX25-210-840 PPGL Roof Tile	YX35-125-750 PPGI Roof Panel	Low Rib PPGI Corrugated Sheet
Substrate	DX51D Aluzinc GL	DX51D Galvanized GI	DX51D Galvanized GI
Rib Height	25mm	35mm	18mm
Effective Width	840mm	750mm	988mm
Anti-corrosion	Excellent (coastal suitable)	Good	Normal
Drainage Performance	Good	Excellent	Medium
Unit Cost	Medium-High	Medium	Low

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Modern Industrial Factories ppgi corrugated steel

New Rural Construction PPGI Corrugated Steel

Warehousing and Logistics Centers PPGI Corrugated Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What does YX25-210-840 stand for?

YX25-210-840 represents 25mm rib height, 210mm rib spacing, 840mm effective coverage width after roll forming.

What is the difference between PPGL and PPGI roof sheet?

PPGL uses aluzinc(GL) substrate, better anti-corrosion for coastal salty air; PPGI uses galvanized(GI) substrate, cost effective for inland areas.

What coating options are available for YX25-210-840 PPGL roof tile?

PE, HDP, SMP and PVDF coatings are available, PVDF provides the longest anti-fading service life.

Can I get custom RAL color for this corrugated roof tile?

Yes, full RAL color codes are available, custom color matching can be supported for bulk orders.

What thickness options for YX25-210-840 PPGL sheet?

Available thickness from 0.4mm up to 1.0mm. Thicker options offer higher load capacity for snow load regions.

Where is YX25-210-840 PPGL roof tile commonly used?

It is widely used for coastal buildings, residential roofing, factory workshops, warehouses, farm buildings and exterior wall cladding.
