DX51D DX52D DX53D DX54D Hot Dipped Galvanized Steel Sheet | EN10346 Formable GI Steel
- Complete formability grade ladder from general bending to ultra-deep drawing to meet diverse stamping needs
- Low-carbon steel substrate ensures excellent ductility, no cracking during complex cold forming processing
- Strict EN10346 standard compliance with stable chemical composition and consistent mechanical properties
- Uniform zinc coating adhesion, available in multiple zinc layer weights for customized anti-corrosion demands
- Smooth spangle surface with fewer defects, ideal for post-processing painting, coating and assembly
Contact Us
Product Overview

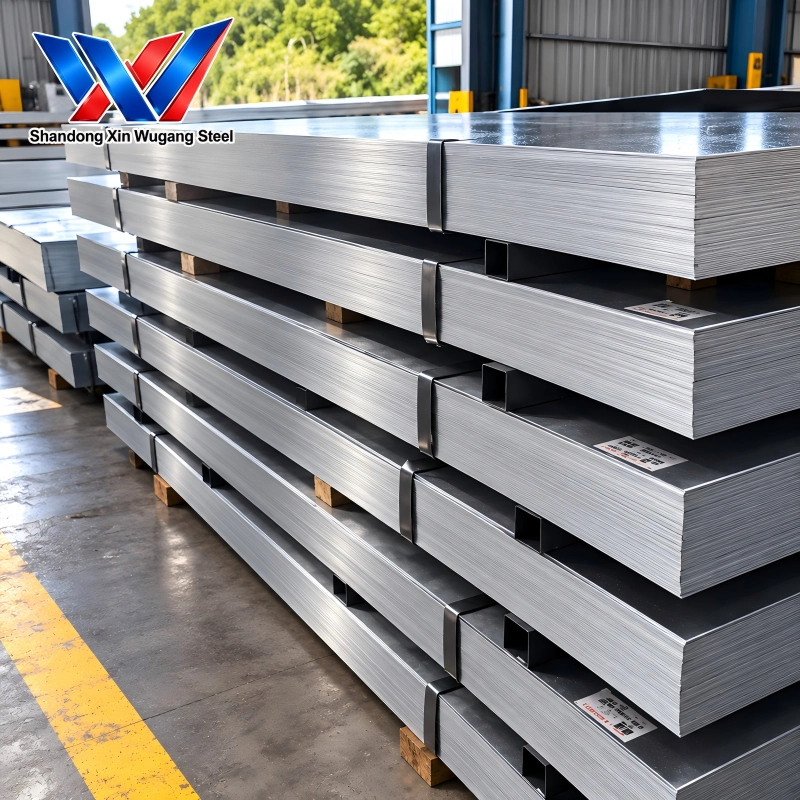

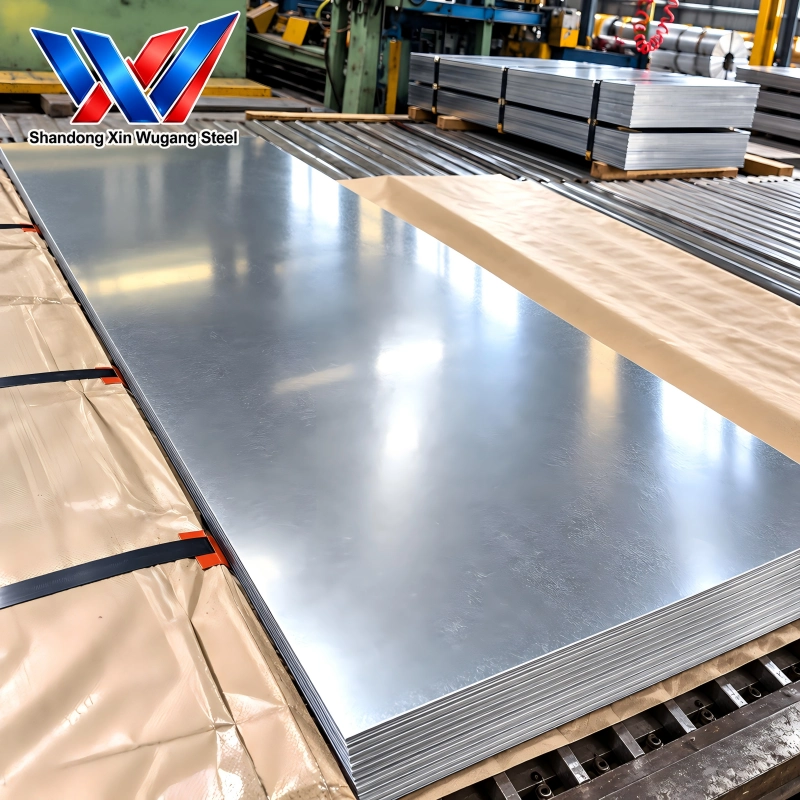

DX51D, DX52D, DX53D and DX54D are full-series cold-forming hot-dipped galvanized steel sheets manufactured in accordance with EN 10346 European standard. As the most popular formable GI steel grades in global market, these four grades cover all conventional forming scenarios, ranging from simple roll bending to ultra-complex deep drawing stamping.
DX51D is the general-purpose commercial grade for basic profiling and bending. DX52D features improved ductility for medium stamping and forming. DX53D is professional deep-drawing grade suitable for moderately complex stamped parts. DX54D is ultra-low carbon ultra-deep drawing grade, specially designed for severe forming requirements with extremely high elongation and excellent anti-aging performance.
Adopting continuous hot-dip galvanizing technology, the DX series GI sheets provide uniform zinc coating and strong surface adhesion. Multiple zinc coating options are available from Z40 to Z275g/m², with regular, minimal and zero spangle surface optional. The size range covers thickness 0.25mm–3.0mm, width 700mm–1500mm, supporting custom cut-to-size service. Widely applied in home appliance shells, ventilation ducts, automotive interior parts, metal furniture, architectural profiles, electrical cabinets and general metal fabrication industries. Every batch is equipped with complete MTC certificates and supports third-party inspection for global engineering and trading projects.
Chemical & Mechanical Property Snapshot (EN10346 Standard)
Detailed Technical Specifications
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications
HVAC Ducts GI Steel
Keels Steel Framing GI Steel
Home Appliance Casings GI Steel
Appliance casing
Electrical Distribution Cabinets GI Steel
Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
Select DX51D for low-demand simple bending and profiling; DX52D for conventional stamping parts; DX53D for deep-drawing components; DX54D for ultra-complex forming and high-precision stamped products. We provide free professional grade selection guidance according to your processing drawings.
We support full zinc coating range from Z40 to Z275g/m². Conventional stock specifications include Z80, Z120, Z180 and Z275. Custom zinc layer thickness can be produced according to customer anti-corrosion requirements.
Yes. DX51D-DX54D galvanized sheets feature smooth surface and stable zinc adhesion, which is perfectly suitable for spraying, powder coating and painting treatment without paint peeling or blistering.
Absolutely. We supply EN10204 3.1 MTC material test reports, packing lists and commercial invoices. SGS/BV third-party inspection reports can also be arranged to meet European and global project acceptance standards.
Yes. Mixed loading of DX51D, DX52D, DX53D and DX54D with different sizes and zinc coatings is supported, helping customers save procurement and logistics costs.
DX series complies with European EN10346 standard, focusing on cold forming performance, while CS/SS series follows ASTM standard. DX grades have more precise forming classification and are more popular in European, Middle Eastern and African markets.
