DX51D GL Aluzinc Corrugated Roof Sheet | AZ50-AZ150 Galvalume Roofing

DX51D base material offers excellent formability for corrugated roll forming
Aluzinc AZ50~AZ150 coating provides superior anti-rust performance vs regular GI
Good heat reflectivity, reduce building internal temperature & energy cost
Light weight yet high structural strength, easy transport and on-site installation
Long service life, suitable for outdoor harsh environment with low maintenance

Product Overview

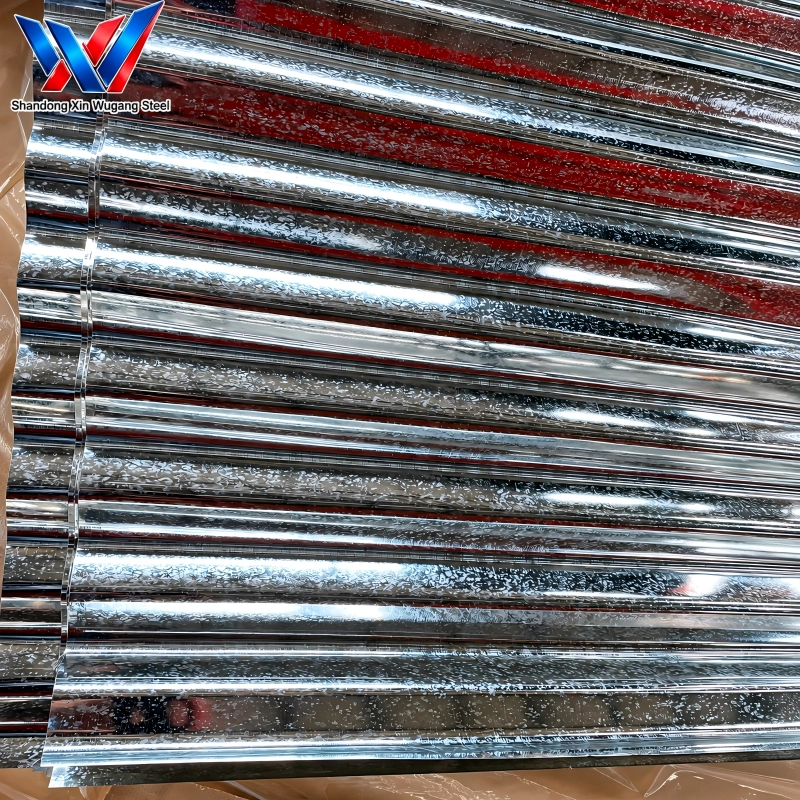

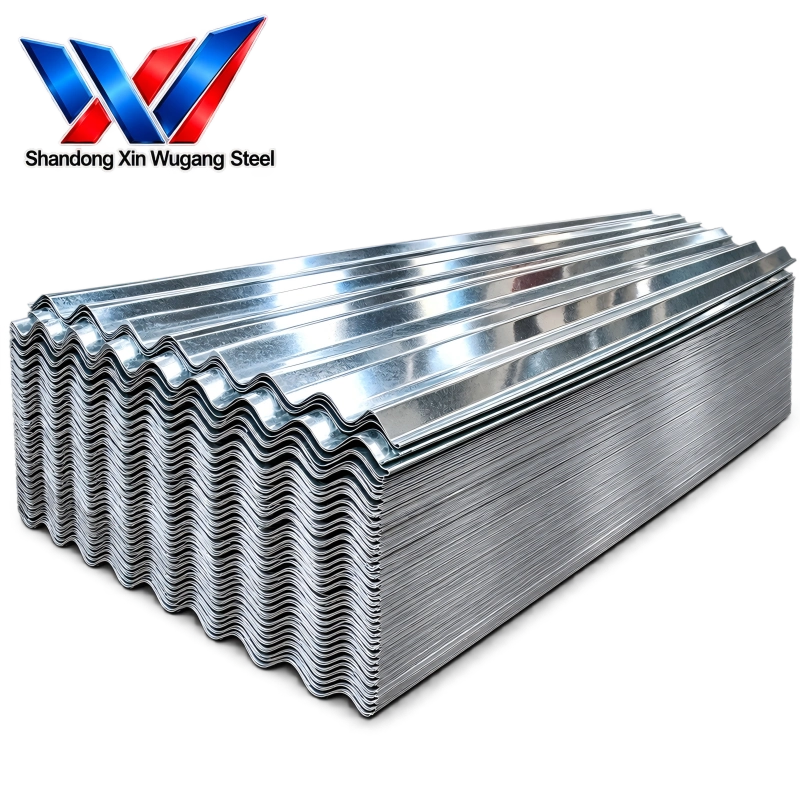

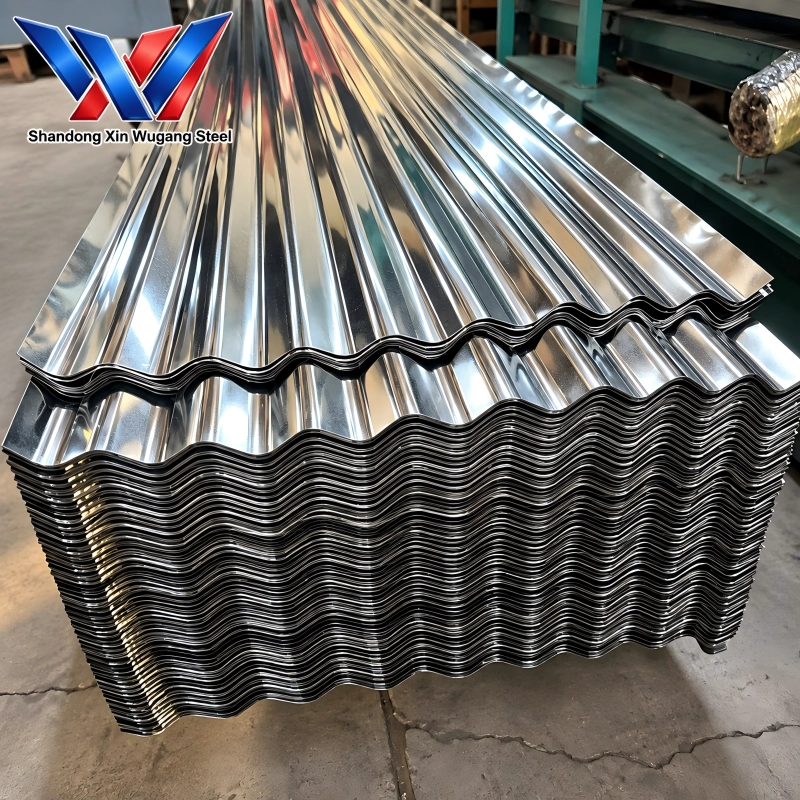

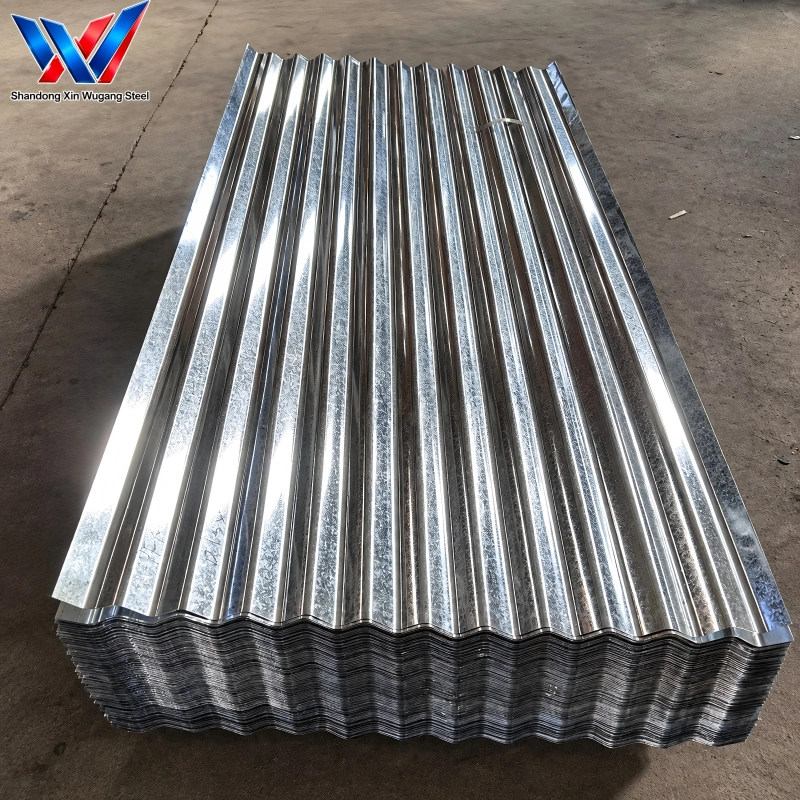

DX51D GL Aluzinc Corrugated Roof Sheet, also known as galvalume corrugated roofing panel, adopts DX51D cold rolled substrate coated with aluminum-zinc alloy (55% Al-Zn). Available coating weight ranges from AZ50, AZ70, AZ100 to AZ150 to meet different anti-corrosion requirements.

The corrugated profile improves bending strength and water drainage performance, widely applied in industrial factories, warehouses, agricultural barns, carports, temporary workshops and wall cladding projects. Our DX51D aluzinc roof sheets can be customized in effective width, thickness, length and wave profile according to customer drawings. The surface can be regular spangle, minimal spangle or anti-fingerprint treatment.

This DX51D grade substrate features great ductility, no cracking during corrugation. Aluzinc coating provides self-healing protection at cut edges, effectively resisting oxidation, moisture and mild chemical corrosion.

GI & GL Corrugated Roofing Steel Sheet

Chemical & Mechanical Property Snapshot

Item	Standard	DX51D GL
C Max	EN10346	≤0.12%
Mn Max	EN10346	≤0.60%
Si Max	EN10346	≤0.50%
P Max	EN10346	≤0.10%
S Max	EN10346	≤0.045%
Yield Strength	EN10346	260~360 MPa
Tensile Strength	EN10346	270~410 MPa
Elongation (L80)	EN10346	≥26%
Coating Weight	EN10346	AZ50 / AZ70 / AZ100 / AZ150

Detailed Technical Specifications

Parameter	Specification
Base Grade	DX51D
Coating Type	Aluzinc (55% Al-Zn) GL
Coating Mass	AZ50, AZ70, AZ100, AZ150 g/m²
Thickness	0.18mm – 1.2mm
Effective Width	660mm, 800mm, 840mm, 900mm, 1000mm
Length	Custom cut to required length
Surface Option	Regular spangle, Minimal spangle, Anti-fingerprint (AFP)
Standard	EN10346
Profile	Corrugated roof panel, trapezoidal profile available
Application	Roofing, wall cladding, agricultural building, warehouse

Quality Documents	Complete Mill Test Certificates
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Available Roof Corrugated Profiles

We supply a comprehensive range of GI & GL corrugated roofing profiles, including trapezoidal rib panels, classic arc sinusoidal corrugated sheets, hidden fastener standing seam profiles. Different wave heights, effective widths and structural strength options can match diverse wind load, drainage, wall cladding and roofing project requirements. All profiles can be roll-formed from GI hot-dip galvanized or GL aluzinc steel substrate.

Profile Model	Wave Height	Pitch (Wave Spacing)	Effective Cover Width	Raw Coil Width	Core Features	Typical Application
YX8-31.5-882	8 mm	31.5 mm	882 mm	1000 mm	Ultra-low rib, lightweight, economical, simple forming	Interior wall panel, temporary enclosure, inner lining board
YX15-225-900	15 mm	225 mm	900 mm	1000 mm	Low trapezoidal rib, good cost performance, easy installation	Agricultural sheds, site temporary walls, small workshop roofing
YX18-76-988	18 mm	76 mm	988 mm	1200 mm	Small round wave, smooth arc, nice drainage, wide coverage	Farm buildings, poultry houses, simple wall cladding
YX25-210-840	25 mm	210 mm	840 mm	1000 mm	Medium trapezoidal rib, stable bearing capacity, most popular standard model	Factory roofs, warehouse wall cladding, general industrial roofing
YX28-205-820	28 mm	205 mm	820 mm	1000 mm	Medium-high rib, high rigidity, good snow load resistance	Warehouse roofs, factory wall panels, medium-span buildings
YX35-125-750	35 mm	125 mm	750 mm	1000 mm	High rib design, excellent drainage, strong anti-wind-uplift performance	Large industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	35 mm	215 mm	860 mm	1000 mm	Wide pitch high rib, large supporting span	Large factory roofs, logistics warehouses
YX51-380-760	51 mm	380 mm	760 mm	1000 mm	Deep high rib, heavy load bearing, strong wind resistance	Large-span industrial buildings, heavy snow region roofing
YX66-394-788	66 mm	394 mm	788 mm	1000 mm	Standing seam hidden fastener, 360° lock, no screw penetration, superior waterproof performance	Public buildings, large industrial roofs, coastal high-wind projects
1050 Arc Sinusoidal Corrugated Sheet	18 mm	130 mm	1050 mm	1200 mm	Classic circular arc wave, smooth waveform, outstanding rainwater runoff	Farm sheds, poultry houses, economical residential roofing
1220 Wide Arc Corrugated Sheet	20 mm	140 mm	1220 mm	1250 mm	Wide effective width, fewer seams, fast construction speed	Large-area simple roofs, temporary factory coverings

Product Comparison Table

Product	DX51D GL Aluzinc Corrugated Roof Sheet	GI Galvanized Corrugated Sheet	PPGI Corrugated Roof Sheet
Coating	Aluzinc AZ50-AZ150	Zinc coating Z40-Z275	Zinc + organic paint
Anti-corrosion	Excellent	Good	Very Good
Heat reflection	High	Medium	High
Base Grade	DX51D	DX51D	DX51D
Surface	Metallic silver	Bright zinc	Custom RAL color
Typical Lifetime	15–30 years	8–18 years	20–30 years
Best Use	Unpainted roofing, harsh humid area	General dry building	Color decorative roof

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Simple Warehouse Roofing GI Corrugated Steel

Temporary Site Fencing GI Corrugated Steel

Residential Roofing GI Corrugated Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

GI & GL Corrugated Roofing Steel Sheet 5

FAQs

What is DX51D GL aluzinc corrugated roof sheet?

DX51D GL corrugated roof sheet is DX51D steel base covered with 55% aluminum-zinc aluzinc coating, pressed into corrugated profile for roofing and wall cladding.

What difference between AZ50 and AZ150 aluzinc coating?

Higher AZ value means thicker aluzinc layer. AZ150 has much better anti-corrosion performance, suitable for coastal high humidity environment; AZ50 is cost choice for inland dry projects.

Can you provide anti-fingerprint treatment for DX51D GL roofing sheet?

Yes, AFP anti-fingerprint finish is optional, it protects surface from fingerprint stain and further improves corrosion resistance.

What profiles of DX51D aluzinc corrugated sheets you supply?

We supply common corrugated wave and trapezoidal profiles. Custom profiles are acceptable if you provide drawing.

What is the minimum order quantity for DX51D GL galvalume roofing?

MOQ depends on thickness and profile, small trial order is available, bulk order for large construction project is welcomed.

Is DX51D aluzinc roof sheet suitable for seaside projects?

AZ100 & AZ150 grade are recommended for coastal environment, we also suggest extra surface protection to extend service life under salt spray condition.
