Zero Spangle GI Corrugated Roofing Steel Sheet | Bright Surface Galvanized Roof Panel

Zero spangle bright surface, uniform smooth appearance without visible zinc flower
DX51D steel substrate with good ductility, stable forming during corrugated rolling
Multiple zinc coating Z60~Z275 options, reliable long-term anti-corrosion protection
Consistent surface quality, easy for later painting or additional surface treatment
Lightweight corrugated panel, simple cutting, transportation and on-site installation

Product Overview

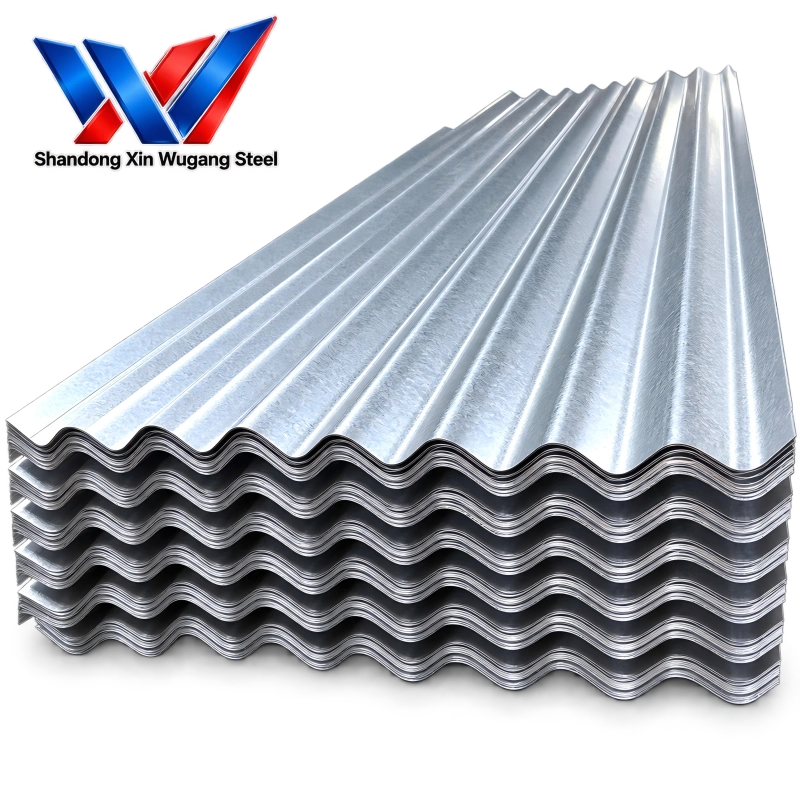

Zero Spangle GI Corrugated Roofing Steel Sheet is hot-dip galvanized corrugated sheet manufactured with zero spangle technology. Unlike regular spangle GI sheet with obvious zinc flower patterns, zero spangle product presents a flat, bright and uniform metallic surface. It adopts DX51D base steel, zinc coating weight ranging from Z60 to Z275 g/m² to satisfy different anti-rust requirements.

This bright surface galvanized roof panel can be produced in round wave corrugated or trapezoidal profiles, widely used for roofing and wall cladding of steel workshops, warehouses, farm barns, carports and temporary buildings. Custom thickness and cut-to-length service is supported. The zero spangle finish eliminates uneven zinc crystal marks, making it ideal for projects requiring neat surface or subsequent paint coating.

Hot dipped zinc layer offers cathodic protection for steel substrate. Zero spangle treatment will not reduce the corrosion resistance of galvanized coating.

GI & GL Corrugated Roofing Steel Sheet

Chemical & Mechanical Property Snapshot

Item	Standard	DX51D GI Substrate
C Max	EN10346	≤0.12%
Mn Max	EN10346	≤0.60%
Si Max	EN10346	≤0.50%
P Max	EN10346	≤0.10%
S Max	EN10346	≤0.045%
Yield Strength	EN10346	260~360 MPa
Tensile Strength	EN10346	270~410 MPa
Elongation (L80)	EN10346	≥26%
Coating Weight	EN10346	Z60 / Z80 / Z100 / Z120 / Z200 / Z275

Detailed Technical Specifications

Parameter	Specification
Product Name	Zero Spangle GI Corrugated Roofing Steel Sheet
Base Grade	DX51D
Coating Type	Hot Dip Galvanized GI, Zero Spangle
Coating Mass	Z60 ~ Z275 g/m²
Thickness	0.18mm – 1.4mm
Profile	Round wave corrugated / trapezoidal corrugated
Effective Width	660mm, 800mm, 840mm, 900mm, 1000mm
Length	Custom cut to length
Surface Option	Zero spangle, bright smooth surface
Executive Standard	EN10346
Application	Roofing, wall cladding, warehouse, farm building, steel structure workshop

Quality Documents	Complete Mill Test Certificates
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Available Roof Corrugated Profiles

We supply a comprehensive range of GI & GL corrugated roofing profiles, including trapezoidal rib panels, classic arc sinusoidal corrugated sheets, hidden fastener standing seam profiles. Different wave heights, effective widths and structural strength options can match diverse wind load, drainage, wall cladding and roofing project requirements. All profiles can be roll-formed from GI hot-dip galvanized or GL aluzinc steel substrate.

Profile Model	Wave Height	Pitch (Wave Spacing)	Effective Cover Width	Raw Coil Width	Core Features	Typical Application
YX8-31.5-882	8 mm	31.5 mm	882 mm	1000 mm	Ultra-low rib, lightweight, economical, simple forming	Interior wall panel, temporary enclosure, inner lining board
YX15-225-900	15 mm	225 mm	900 mm	1000 mm	Low trapezoidal rib, good cost performance, easy installation	Agricultural sheds, site temporary walls, small workshop roofing
YX18-76-988	18 mm	76 mm	988 mm	1200 mm	Small round wave, smooth arc, nice drainage, wide coverage	Farm buildings, poultry houses, simple wall cladding
YX25-210-840	25 mm	210 mm	840 mm	1000 mm	Medium trapezoidal rib, stable bearing capacity, most popular standard model	Factory roofs, warehouse wall cladding, general industrial roofing
YX28-205-820	28 mm	205 mm	820 mm	1000 mm	Medium-high rib, high rigidity, good snow load resistance	Warehouse roofs, factory wall panels, medium-span buildings
YX35-125-750	35 mm	125 mm	750 mm	1000 mm	High rib design, excellent drainage, strong anti-wind-uplift performance	Large industrial plants, heavy rainfall areas, large-span warehouses
YX35-215-860	35 mm	215 mm	860 mm	1000 mm	Wide pitch high rib, large supporting span	Large factory roofs, logistics warehouses
YX51-380-760	51 mm	380 mm	760 mm	1000 mm	Deep high rib, heavy load bearing, strong wind resistance	Large-span industrial buildings, heavy snow region roofing
YX66-394-788	66 mm	394 mm	788 mm	1000 mm	Standing seam hidden fastener, 360° lock, no screw penetration, superior waterproof performance	Public buildings, large industrial roofs, coastal high-wind projects
1050 Arc Sinusoidal Corrugated Sheet	18 mm	130 mm	1050 mm	1200 mm	Classic circular arc wave, smooth waveform, outstanding rainwater runoff	Farm sheds, poultry houses, economical residential roofing
1220 Wide Arc Corrugated Sheet	20 mm	140 mm	1220 mm	1250 mm	Wide effective width, fewer seams, fast construction speed	Large-area simple roofs, temporary factory coverings

Product Comparison Table

Product	Zero Spangle GI Corrugated Roof Sheet	Regular Spangle GI Corrugated Sheet	Minimal Spangle GI Roof Panel
Surface Feature	Bright, no visible zinc flower	Obvious large zinc flower	Tiny faint zinc flower
Coating	Zinc Z60-Z275	Zinc Z60-Z275	Zinc Z60-Z275
Anti-corrosion	Good	Good	Good
Post painting suitability	Excellent	Fair	Good
Appearance uniformity	Highest	Normal	Medium
Typical Service Life	8–18 years	8–18 years	8–18 years
Best Use	Projects requiring smooth bright surface & repainting	General low-cost roofing	Medium aesthetic requirement building

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Simple Warehouse Roofing GI Corrugated Steel

Temporary Site Fencing GI Corrugated Steel

Residential Roofing GI Corrugated Steel

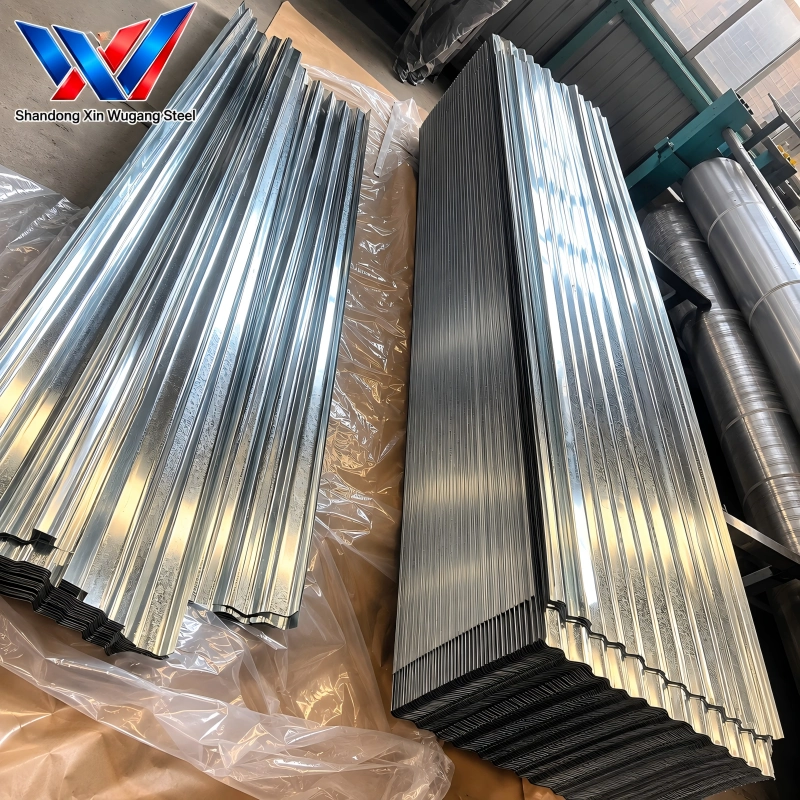

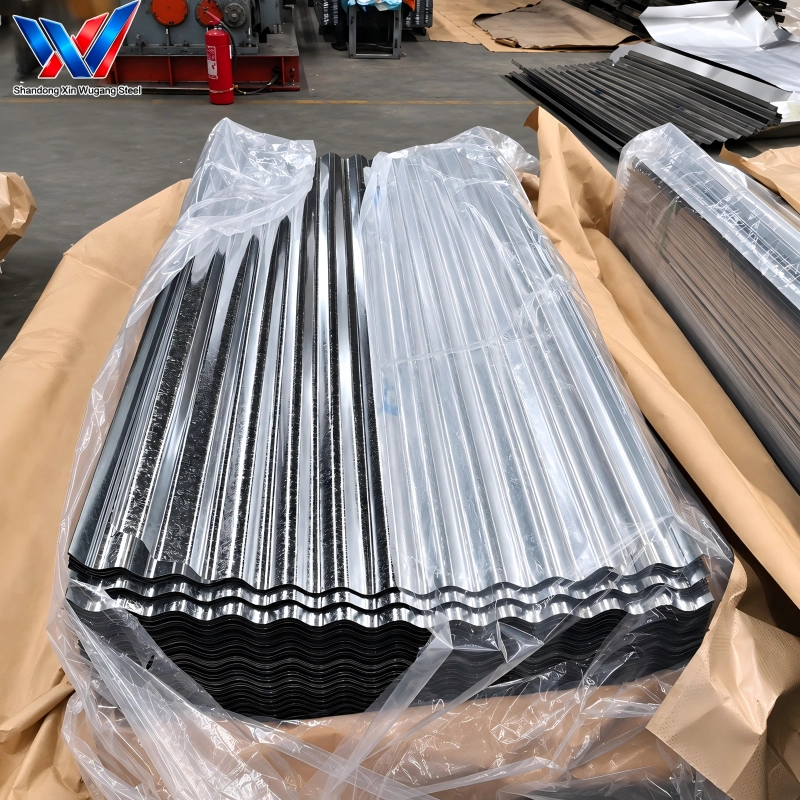

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

GI & GL Corrugated Roofing Steel Sheet 5

FAQs

What is zero spangle GI corrugated roofing sheet?

Zero spangle GI sheet is hot-dip galvanized steel without zinc flower crystals, featuring fully bright, smooth and uniform surface after corrugated forming.

What is the difference between zero spangle and minimal spangle galvanized sheet?

Zero spangle has completely no visible zinc flower; minimal spangle still has tiny faint zinc crystal marks under close observation.

Can zero spangle GI sheet be painted directly?

Yes. Its smooth uniform surface is very suitable for direct painting, much better than regular big spangle GI sheet.

What zinc coating grade is recommended for zero spangle corrugated roof panel?

Z60-Z100 for inland dry buildings; Z200-Z275 is suggested for humid environment to extend service life.

Can you supply zero spangle GI sheet in trapezoidal profile?

Yes, both traditional round wave corrugated and trapezoidal profiles are available.

Is zero spangle surface more expensive than regular spangle GI sheet?

Yes, zero spangle production needs special melting control, so unit price is slightly higher than common spangle galvanized sheet.
